EP continuous asphalt mixing plant is no interruption in the process of asphalt production, the asphalt mixing plant is widely used for the projects, which quality of the finished mixture requirement is comparatively low.

Production Types

Mixer Types

Name:

Continuous Asphalt Mixing Plant

Raw Material Production Capacity:

60/80/100/130TPH

Control system:

PLC+Touching screen

Quote Now

Send E-mail

Share With:

Features

Technical Info

Project

Inquiry

Continuous Asphalt Mixing Plant

Continuous asphalt mixing plant is with energy saving burner, fuel,oil,gas, coal for option.
The asphalt mixing plant occupies a small area, its productivity is high, and its input cost is low.
The basic work of the continuous asphalt plant is simple, and the mobile device can be equipped as mobile.
The asphalt plant filler is added accurately in proportion to ensure the high quality of the mixture.

Continuous Asphalt Mixing Plant

Model	EP-DHB60	EP-DHB80	EP-DHB100	EP-DHB130
Raw Material Production Capacity	60TPH	80TPH	100TPH	130TPH

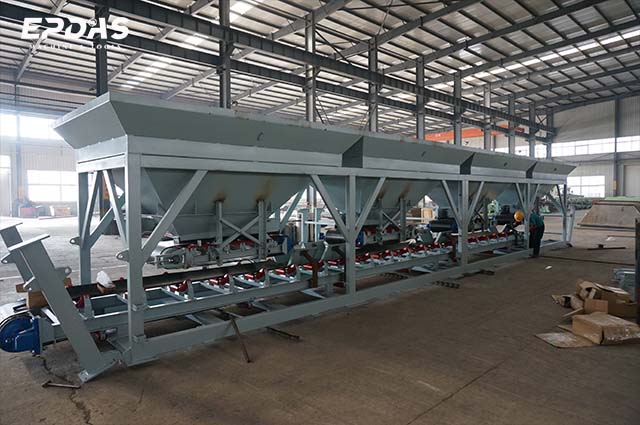

Cold hopper	3*6.5m3	4*8m3	4*8m3	4*8m3
Dryer Drum Dia.x L	ɸ1200x6500mm	ɸ1500x8000mm	ɸ1500x9000mm	ɸ1800x8000mm
Aggregate Burner Consumption	550kg/h	650kg/h	850kg/h	1200kg/h
Dust Collecting Filtering Area	384m2	480m2	408m2	528m2
Thermal Storage Bin Volume	5m3	10m3	12m3	12m3
Bitumen Tank Volume	1x 30 m3	1x 40 m3	2x 40 m3	3x 40 m3
Additive Screw Conveyor Motor	1x 0.75kw	1x 0.75kw	1x 0.75kw	1x 1.1kw
Control system	PLC+Touching screen
