Spider Boom

EP spider concrete placing boom with "Z" shaped three sections folding arm, 360 ° rotation, which can achieve full-casting within the boom length to three-dimensional space, can easily achieve the various concrete pouring to wall, pipes, columns, piles etc.Spider boom is of high reliability, efficiency and convenience, which could be working together with concrete pump for concrete pumping and placing in construction projects.

Production Types

Mixer Types

Name:

Spider Boom

Max. placing radius:

13/15/17/18

Big arm length:

3.7/6/6.66/7.66

Quote Now

Send E-mail

Share With:

Features

Technical Info

Project

Inquiry

Spider Boom

Spider boom can be placed in suitable places required without being fixed.It is suitable for the construction of any concrete structure, such as buildings, bridges, foundations, etc.
Spider concrete placing boom is made of high-quality materials, making them durable and less prone to wear and tear. It features compact structure, lightweight and can be lifer as a whole by crane.
With excellent maneuverability,spider concrete placing boom can meet the requirements for concrete placement on different job sites, and it is ideas for concrete pimping and placing,
Easy operation, reliable safety and economical purchase.The hydraulic system is equipped with a safety relief valve to prevent overloading of the working mechanism.

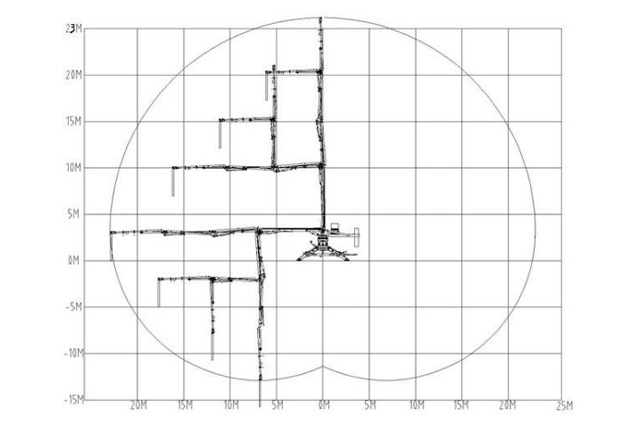

Spider Boom

Item	Unit	Models and parameter
Item	Unit	HGY13	HGY15	HGY17	HGY18
Max. placing radius	m	13	15	17	18
Big arm length	m	3.7	6	6.66	7.66
Big arm elevation	°	-2～84.4	0～70	0～65	0～65
Medium arm length	m	4.52	5	5.73	5.73
Medium arm elevation	°	0～180	0～180	0～180	0～180
Small arm length	m	4.78	4	4.61	4.61
Small arm elevation	°	0～180	0～180	0～180	0～180
Hose length	m	3	3	3	3
Concrete delivery pipe	mm	ø125×6	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.72	2.81	3.51	3.93
Total power	Kw	4	4	5.5/7.5	5.5/7.5
System pressure	Mpa	24	24	24	24
Rotary speed	r/min	0.3—0.8	0.3—0.8	0.3—0.8	0.3—0.8
Rotary range	°	0～360	0～360	0～360	0～360
Supporting legs span	m	3.15×3.15	4×4	4.6×4.6	5×5
Overall height	m	2.9	2.6	3.2	3.75
Bare machine weight	kg	2700	3230	5000	6700
Balance weight	kg	2×900	2×1100	2200	2×1100
Control mode	kg	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control
