T2506 Telescopic Handler Forklift
The T2506 telescopic handler forklift boasts a maximum lifting capacity of 2,500 kg, a maximum lifting height of 6.0 m, and a maximum forward reach of 2.16 m, making it a high-performance piece of material handling equipment. It efficiently executes cargo handling, stacking, and loading/unloading tasks across various settings, including warehouses, construction sites, and municipal engineering projects. The compact telehandler is powered by engines from renowned brands—such as Yunnei, Yuchai, or Cummins (with customizable brand options available)—ensuring robust power output while simultaneously prioritizing fuel efficiency.
Production Types
Mixer Types
Model:
T2506
Max Lifting Height:
6.0m
Max Load:
2500kg
Max Outreach:
2.16m
Share With:

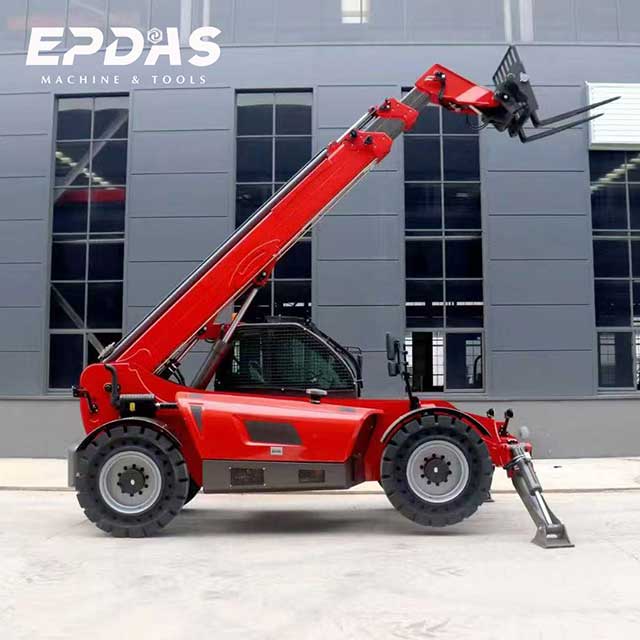

T2506 telescopic handler forklift
Features
Technical Info
Inquiry
T2506 Compact Telehandler
  • Efficient Power Configuration with Customizable Engine Options; The small telescopic handler offers a choice of engines from brands such as Yunnei, Yuchai, or Cummins. With a rated power output of 70 HP (58 kW) and a maximum torque of 181 N·m, it delivers powerful performance capable of meeting the demands of diverse working conditions and emission standards.

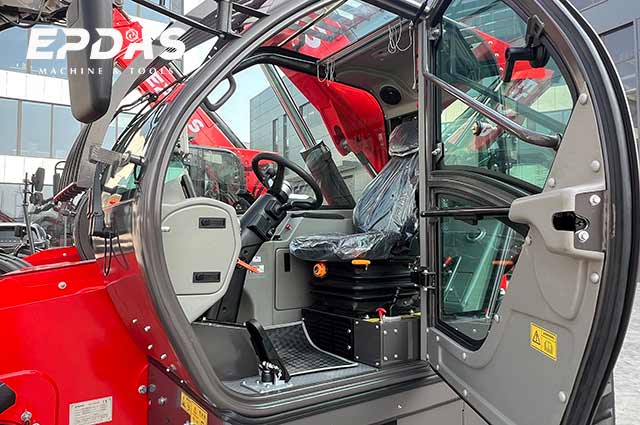

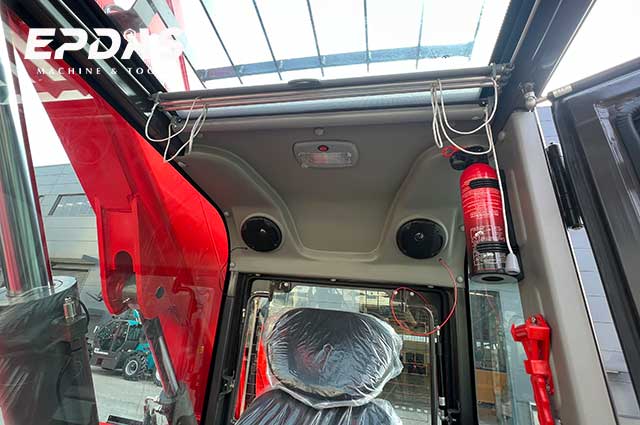

  • Reliable Safety Features and a Comfortable Operating Environment; Equipped with a Level 2 FOPS-certified safety cab, the T2506 telehandler maintains a low noise level of just 76 dB at the operator's station, providing a comfortable and secure working environment. Both the front and rear axles feature disc brakes (with wet brakes available as an option), ensuring rapid braking response to guarantee safety during both travel and operation.
  • High-Efficiency Hydraulic System for Rapid Operation Response; The hydraulic system delivers a flow rate of 85 L/min at a pressure of 220 bar. This ensures rapid response times for key movements—including lifting, lowering, extending, and tilting—resulting in high operational efficiency (lifting takes just 17 seconds, while retraction takes 6.5 seconds).

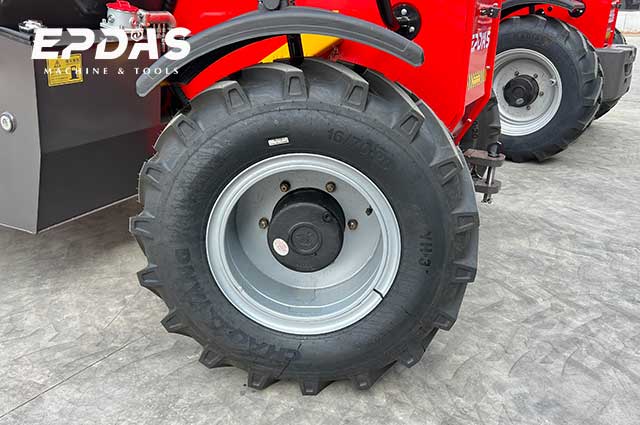

  • Robust Structure Built for Demanding Conditions; With an unladen weight of 5,800 kg and a low center of gravity, the compact telehandler for tight spaces ensures exceptional stability during both travel and lifting operations. It features a ground clearance of 0.23 m and is fitted with standard 12-16.5 tires, providing excellent terrain passability.
Parameters Of T2506 Telescopic Handler Forklift

♦ EPDAS telehandlers feature a comprehensive product lineup, covering load capacities ranging from 2.5 to 6 tons and lifting heights from 6 to 18 meters, thereby meeting diverse requirements—from small-scale warehousing operations to heavy-duty engineering construction projects.



♦ From raw material selection to final assembly, the T2506 compact telehandler adheres strictly to standardized production protocols, demonstrating a steadfast commitment to providing customers with products and services of the highest quality. Backed by a robust quality management system, the T2506 consistently delivers exceptional performance, even within high-intensity, multi-scenario operating environments.



♦ We provide professional technical support to ensure that the small telescopic handler maintains optimal operational status throughout its actual field deployment. Leveraging a comprehensive spare parts supply network, we can rapidly respond to replacement needs for critical components—such as engines, hydraulic pumps, and transmissions—thereby effectively minimizing equipment downtime and failure rates.



Model T2506
Lifting height Max. 6000mm
Load Max. 2500KG
Engine 76kw (Brand: YUNNEI)
Extension Supporting Legs YES
Operation Handle Hydraulic Pilot Control
Hydraulic System Gear Pump, Hose Burst Check Valve
Transmission Hydraulic static transmission
Dimensions (excluding fork) 4000*2020*2050mm
Fork Size ((L*W*T) 1220*125*50mm (Self-leveling forks)
Travelling speed (unloaded) 35km/hr
Max. Gradeability 10°
Steering Device Four-wheel driven / Four-wheel steering (Crab steering)
Tires

(Quick change device, Pneumatic tire)

12-16.5
