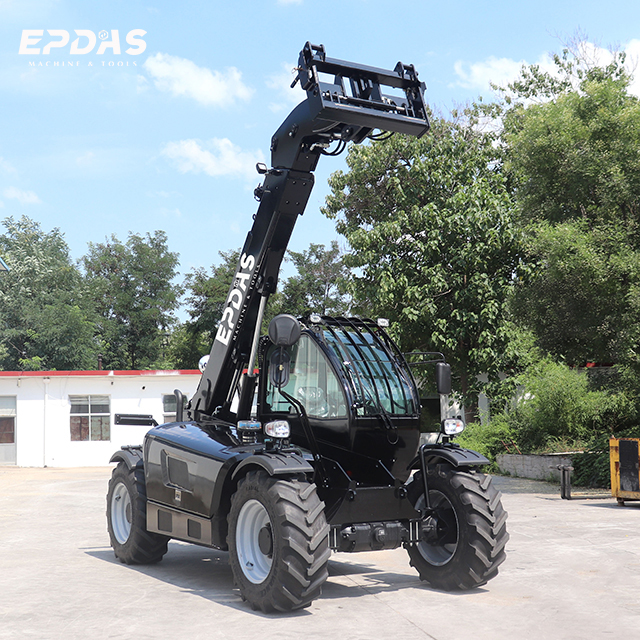

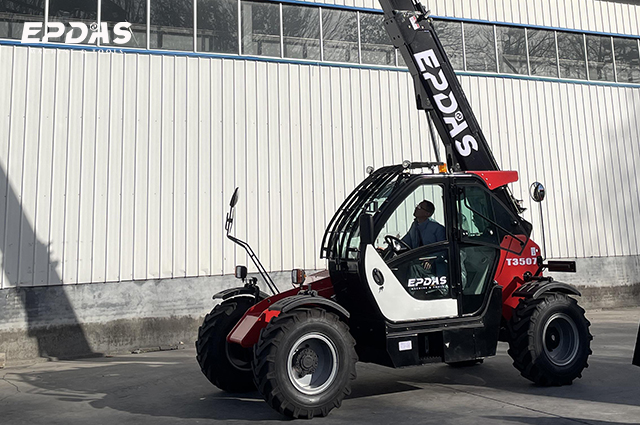

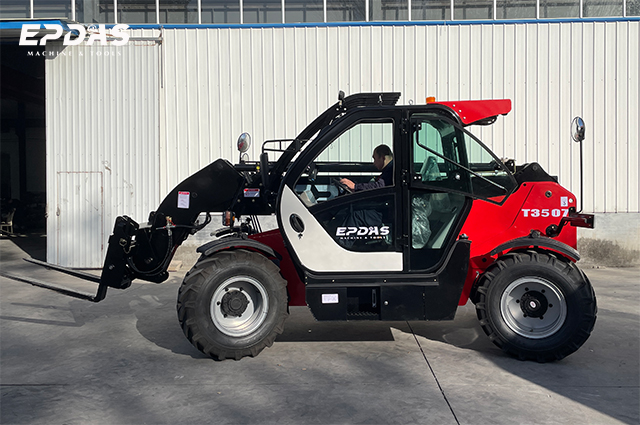

T3507 Telescopic Handler Forklift
EP T3507 Telescopic Handler Forklift is a compact, efficient machine with a 3.5 tonne lifting capacity and 7m reach. The T3507 is used in a variety of applications where high lift height and flexible manoeuvring are required, including lifting and placing construction materials, transporting equipment and accessing hard-to-reach areas on construction sites. It is ideal for loading, unloading and stacking heavy pallets or containers.
Production Types
Mixer Types
Model:
T3507
Max Lifting Height:
7000mm
Max Load:
3500kg
Max Outreach:
3600 mm
Share With:
Telescopic Handler Forklift
Features
Technical Info
Inquiry
Telescopic Handler Forklift
Telescopic Handler Forklift
Telescopic Handler Forklift
Telescopic Handler Forklift
T3507 Telescopic Handler Forklift
  • This 3.5 Ton telehandler has a small footprint and ensures enhanced manoeuvrability, especially in tight spaces, and the four-wheel drive provides excellent stability and control on rough terrain.
  • Equipped with heavy-duty tyres and a rugged chassis, T3507 can traverse challenging terrain including mud, gravel or construction debris. The telescopic fork features an automatic levelling function, ensuring the fork working surface remains level when the telescopic arm is raised/lowered or when the vehicle is travelling over potholes and slopes.
  • 7m telehandler is compatible with a wide range of attachments, including pallet forks, buckets and booms, which can be quickly attached to the telehandler to meet different work requirements. Bucket sizes range from 0.8m wide to 2.2m.
  • This Small Telescopic Forklift has a quiet, safe and comfortable cab (standard engine at idle), noise is s72 dBA, tinted glass all around, front window and skylight FOPS; and is equipped with an overweight warning system, hour meter, engine and oil temperature, gear indicator, fuel gauge.
T3507 Telescopic Handler Forklift



Model T3507
Lifting height Max. 7000mm
Load Max. 3500KG

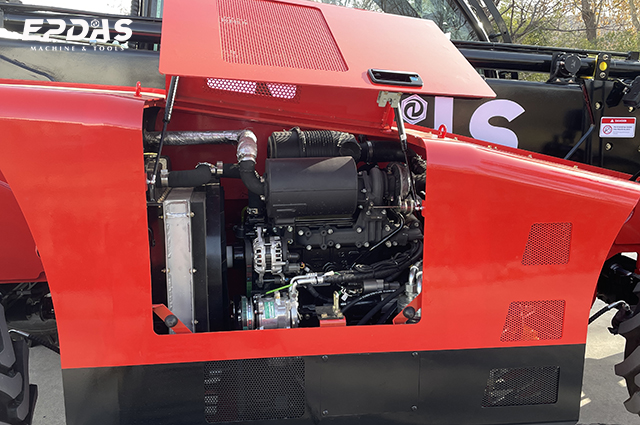

Engine 76kw (Brand: YUNNEI)
Extension Supporting Legs YES
Operation Handle Hydraulic Pilot Control
Hydraulic System Gear Pump, Hose Burst Check Valve
Transmission Hydraulic static transmission
Dimensions (excluding fork) 4730*2390*2485mm
Fork Size ((L*W*T) 1220*150*50mm (Self-leveling forks)
Travelling speed (unloaded) 25km/hr
Max. Gradeability 25°
Steering Device Four-wheel driven / Four-wheel steering (Crab steering)
Tires

(Quick change device, Pneumatic tire)

16/70-24



--> -->
