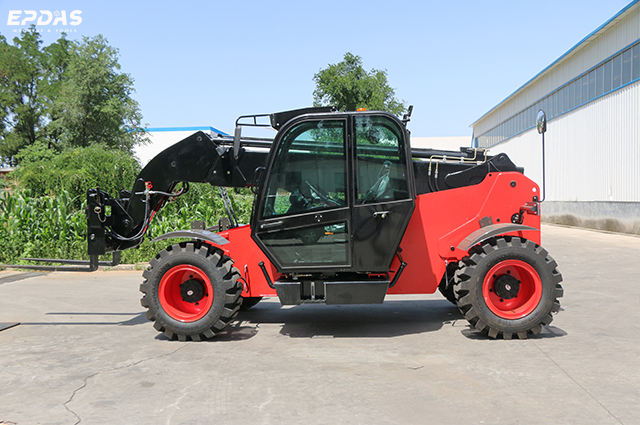

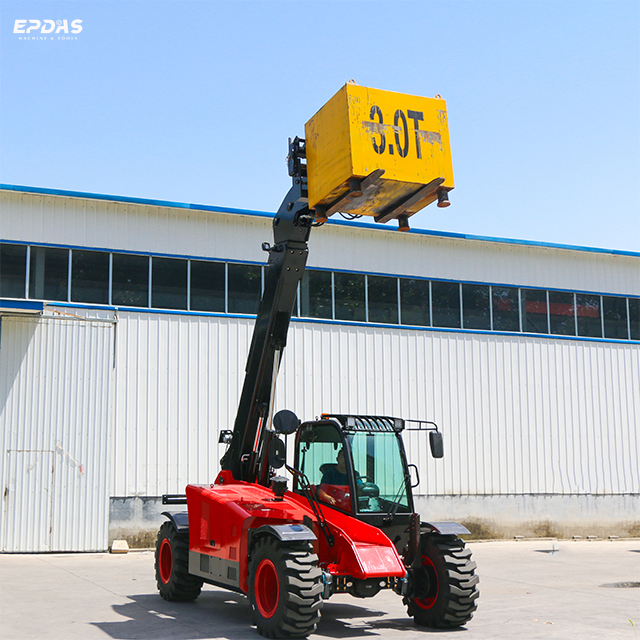

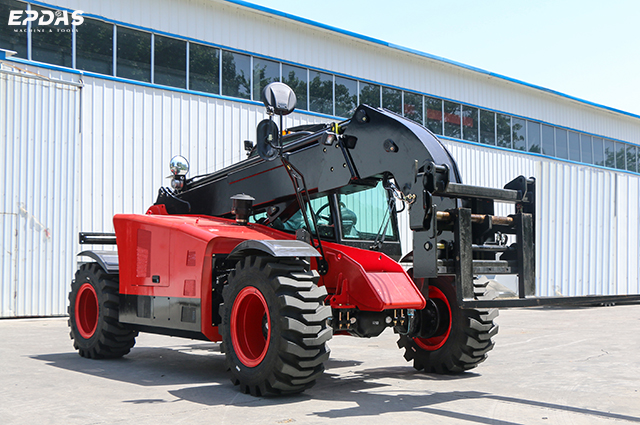

Telescopic Handler Forklift
Till now, EP-MACHINE have exported to Middle East ,Southest Asia,Australia,South America,North America and the UK. We believe that good products should be complemented by the ideal service and support. EP telescopic handler forklift is a multi-purpose lifting and handling equipment, which combines stability and high efficiency, suitable for a variety of material handling environments.
Production Types
Mixer Types
Name:
Telescopic Handler Forklift
Max lifting height:
7000mm/9600mm
Max load:
3000kg/3500kg/4000kg/5000kg
Price:
CALL FOR PRICE
Share With:
Telescopic Handler Forklift
Features
Technical Info
Project
Inquiry
telehandler forklift
telehandler forklift
telehandler forklift
telehandler forklift
telehandler forklift
Telescopic Handler Forklift
  • Telescopic handler forklift has compact mechanism, flexible operation, sensitive lifting, high net load index and accurate fork transport.Comes with four-wheel drive and rigid suspension.
  • Telehandler has a new ergonomic cab and the overall open hood is stronger and more beautiful.Imported telescopic arm fork installation special bridge box, stable and reliable transmission.
  • The telehandler has international top full hydraulic wet braking system, smooth braking, reliable, to ensure driving safety.International famous brand engine for option, strong power.
Telescopic Handler Forklift
Model T3007 T4007 T5010
Lifting height Max. 7000mm Max. 7000mm Max. 9600mm
Load Max. 3000KG Max. 4000KG Max. 5000KG
Engine 76kw (Brand: YUNNEI) 74kw (Brand: YUCHAI) 97kw (DF CUMMINS)
Extension Supporting Legs NO NO YES
Operation Handle Hydraulic Pilot Control
Hydraulic System Gear Pump, Hose Burst Check Valve
Transmission Hydraulic static transmission
Dimensions (excluding fork) 4650*2150*2300mm 4730*2390*2485mm 6094*2520*2790mm
Fork Size ((L*W*T) 1220*150*50mm (Self-leveling forks)
Travelling speed (unloaded) 28km/hr 28km/hr 25km/hr
Max. Gradeability 25° 25° 20°
Steering Device Four-wheel driven

Four-wheel steering (Crab steering)

Tires

(Quick change device, Pneumatic tire)

16/70-20 16/70-24 16/70-24
