EP JH50 series truck-mounted concrete boom pump chooses the best quality materials.Truck-mounted boom pump has the benefits of strong pumping system, and does not have the high requirement of the materials condition. The concrete boom pump is the top-choice concrete equipment, which is widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.

Production Types

Mixer Types

Name:

Truck-mounted Concrete Boom Pump

Max. Output:

50m³/h

Quote Now

Send E-mail

Share With:

Features

Technical Info

Project

Inquiry

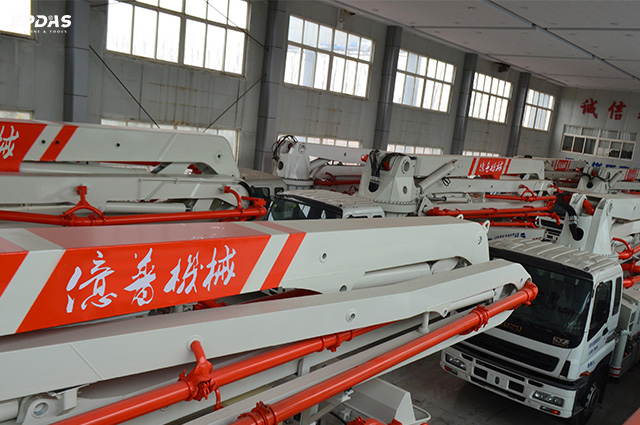

Truck-mounted Concrete Boom Pump

Truck-mounted concrete boom pump is combined with high reliability, economy, safety and durability.
The concrete boom pump has reasonable collocations for the chassis system, power system, control system, hydraulic system and pumping system.
Emission system is up to EURO Ⅲ standard, low noise and easy to repair.
Truck-mounted Boom Pump has the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis.
Equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck can meet the needs of long distance delivery.

Truck-mounted Concrete Boom Pump

Item		Unit	Parameter
Pumping System	Model		JH5018	JH5021	JH5025
	Max. Output	m³/h	50	50	50
	Max. outlet pressure (H/L pressure)	Mpa	13/7.6	13/7.6	13/7.6
	Rated working pressure	Mpa	31.5	31.5	31.5
	Pumping frequency (H/L pressure)	times/min	14/23	14/23	14/23
	Hopper capacity	m3	0.65	0.65	0.65
	Feeding height	mm	1500	1500	1500
	Hydraulic system type		Open circuit	Open circuit	Open circuit
	The type of distribution valve		S VALVE	S VALVE	S VALVE
	Oil cylinder diameter	mm	DN125	DN125	DN125
	Concrete cylinder diameter	mm	DN200	DN200	DN200
	Hydraulic oil cooling		Fan cooling	Fan cooling	Fan cooling
Jib Structure System	Max. placing height	m	18	21	25
	Rotary angle	°	365	365	365
	Arm foldable angle	°	90/180/360	90/180/360	90/180/360/540
	Arms section quantity	section	3	3	4
Chassis and Vehicle	Chassis model		DONGFENG	DONGFENG	SINOTRUCK
	Wheelbase	mm	4700	4700	4700
	Power of engine	kw	132	132	140
	Rated speed of engine	rpm	2200	2200	2200
	Emission standard		IV National IV	IV National IV	IV National IV
	Total weight of vehicle	kg	14000	14500	15500
	Overall dimension of vehicle (LWH)	mm	9350×2500×3500	9450×2500×3535	9650×2500×3535
Others parameter	Hydraulic oil hopper capacity	L	300	300	300
	Water tank capacity	L	300	300	300
	Lubricating mode		Centralized automatic	Centralized automatic	Centralized automatic
	Control mode		Manual and Remote control	Manual and Remote control	Manual and Remote control
