In today’s rapidly developing construction industry, traditional concrete mixing methods are facing serious challenges. According to statistics, in construction projects using traditional mixers, labour costs account for more than 45% of the total cost, and efficiency issues are particularly prominent. However, the advent of self-loading concrete mixers, which combine the three functions of loading, mixing, and transportation into one, has realised a ‘one-stop’ solution for concrete production.
Before delving into the advantages of self-loading mixers, it is essential to first understand the fundamental issues inherent in traditional concrete mixing methods:
(1) Reliance on Human Resources
Traditional mixing plants require a full crew of workers, including 2 material loaders, 1 mixer operator, at least 1 transport driver, and several auxiliary workers. According to the Ministry of Housing and Urban-Rural Development’s 2022 Construction Industry Labour Force Survey Report, a standard mixing plant typically requires 6–8 operators, with labour costs accounting for 35–42% of total operational costs. More critically, as labour costs continue to rise (with an annual growth rate of approximately 8–10%), this proportion is expected to increase further.
(2) Site and Mobility Constraints

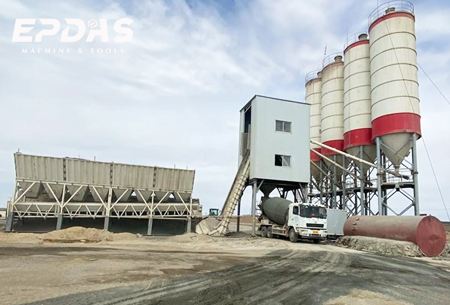

Traditional concrete batching plants require fixed site layouts, including raw material storage areas, mixing zones, and vehicle turnaround areas, typically occupying a minimum of 200 square metres. In special scenarios such as urban renovation or narrow construction sites, such fixed layouts are often impractical. Additionally, concrete transportation relies on dedicated mixer trucks, which not only increase equipment costs but also face numerous traffic restrictions.
(3) Quality Control Challenges
During manual material mixing, the ratio control of sand, gravel, cement, and water relies entirely on workers’ experience, with error rates generally ranging from ±3% to 5%. Test data from the Building Materials Research Institute of Tsinghua University shows that such ratio fluctuations can cause concrete strength to vary by 10% to 15%, severely affecting engineering quality.
(1) Integrated Design
Modern Self Loading Mixtures highly integrate modules such as the loading mechanism, metering system, mixing drum, and cab. Taking the German Carmix 3.5TTX flagship model as an example, it adopts a fully hydraulic drive system, with the overall length of the machine controlled within 6.2 metres and a turning radius of less than 6 metres, perfectly adapting to narrow construction sites.
(2) Intelligent Control System
The latest generation of products are universally equipped with PLC intelligent control systems. For example, the DCS (Dynamic Control System) developed by the Italian Fiori Group can monitor material ratios in real time with an accuracy of ±0.5%, far exceeding the ±3% accuracy of manual operation.
(3) Power system innovation
Diesel-electric hybrid power solutions are emerging as a new industry trend. Apollo’s Hybrid series can operate in pure electric mode for 4 hours, meeting environmental requirements in urban areas, while retaining the range assurance of diesel power.
Traditional concrete construction often requires multiple pieces of equipment, such as loaders, mixers, and transport vehicles, to work in coordination, which not only increases equipment scheduling costs but also relies on the cooperation of multiple trades. The self-loading concrete mixer revolutionises this model — its built-in weighing system and automatic loading device allow a single operator to complete the entire process from loading → measurement → mixing → transportation → unloading.
The economic advantage of concrete self-loading mixers lies in their lifecycle cost control:
| Cost Category | Traditional Equipment | Self-Loading Mixer | Savings Ratio |
| Labor Cost | $3,000+ | $1,500+ | 50% |
| Fuel Cost | $2,000+ | $1,400+ | 30% |
| Maintenance Cost | $800+ | $500+ | 37.5% |
The compact body design of the mobile self-loading mixer (short wheelbase, small turning radius) enables it to perform exceptionally well in narrow environments. Whether in the alleys of rural self-built houses, limited spaces during municipal pipeline repairs, or the complex terrain of mine tunnels, the equipment equipped with off-road tyres and all-wheel drive systems can handle them with ease. The Sany Heavy Industry SY205C model successfully operated continuously in extreme conditions at an altitude of 4,500 metres and a slope of 25° during the Sichuan-Tibet Railway project.
In contrast, traditional trailer-mounted mixers require truck towing and rely on good road conditions, often getting stuck in muddy or sloped environments. The high mobility of self-loading models makes them ‘all-rounders,’ particularly suited for distributed, fragmented construction scenarios.
Through a detailed cost calculation model, the economic advantages of self-loading mixer machines can be clearly demonstrated:
| Cost Component | Self-Loading Mixer | Traditional Setup | Savings Analysis |
| Initial Investment | $80,000-$120,000 (single unit) | $150,000+ (mixer + trucks + batching plant) | 40-50% lower initial outlay |
| Labor Cost/Year | $9,600 (1 operator) | $57,600 (6 workers) | $48,000 annual savings |
| Fuel Consumption | 6-8L/hour (diesel) | 12-15L/hour (fleet) | 45-50% reduction |
| Maintenance | $3,000/year | $8,000+ (multiple equipment) | 60% lower costs |
| Downtime Losses | <5% (integrated system) | 15-20% (coordination delays) | 3x higher availability |
| Resale Value (5 yrs) | 45-50% of original | 25-30% (depreciated fleet) | Better ROI |
Ensuring Mixing Accuracy
Using a dual measurement system combining load cells and flow meters, water-cement ratio control accuracy reaches ±0.3%, ensuring concrete strength standard deviation is controlled within 1.5 MPa.
Breakthrough in Mixing Uniformity
Dual horizontal shaft mixing technology combined with optimised blade angles improves mixing uniformity coefficient to over 0.95 (traditional methods only achieve around 0.85).
Innovative Temperature Control
Some high-end models are equipped with water temperature control systems, ensuring the ideal temperature range of 5°C to 30°C for concrete placement under extreme weather conditions.
Emission Control
Models compliant with National IV emission standards achieve PM emissions <0.025 g/kWh and NOx emissions <3.5 g/kWh, representing a reduction of over 60% compared to traditional equipment.
Noise Mitigation
Through noise-reducing hydraulic systems and soundproof cabins, operational noise is controlled below 75 dB(A), meeting urban nighttime construction standards.
Resource Conservation
An advanced washing and recycling system achieves over 95% wastewater recycling efficiency, saving approximately 1,500 tonnes of water annually.
| Selection Factor | Options | Recommendation | Key Considerations |
| Capacity | 1-2m³ | Small repairs, residential | – Job site access – Batch frequency |
| 3-4m³ (Standard) | Commercial buildings | – Optimal balance – 8-10 cycles/hr | |
| 5m³+ | Large infrastructure | – Requires >100HP – Special transport | |
| Power Type | Diesel | Remote sites | – Fuel availability – 10-12hr continuous |
| Electric Hybrid | Urban projects | – Noise <75dB – Emission zones | |
| Full Electric | Indoor/Green jobs | – 4-6hr runtime – Charging infra | |
| Brand Tier | Premium (EU) | Heavy-duty use | – 10,000+ hour lifespan – Advanced hydraulics |
| Mid-range (Asia) | Value buyers | – 15-20% cheaper – 6,000-8,000 hr | |
| Local (Emerging) | Budget projects | – 30% cost saving – Parts availability |
Q1: What qualifications are required to operate the equipment? How long does it take for someone with no prior experience to learn?
A: Operators must hold a construction machinery operator’s licence (some countries/regions require a special equipment operation permit).
Traditional models require 3-5 days of systematic training (including mechanical principles, safety procedures, and practical exercises). For intelligent models (such as those with touchscreen one-button operation), individuals with no prior experience can be trained for 1-2 days using simulation training and then begin work.
Q2: Can self-loading mixers operate normally under extreme weather conditions?
A: Modern self-loading mixers have strong environmental adaptability:
Temperature range: -20°C to +45°C (appropriate engine oil and hydraulic oil must be used based on temperature).
Terrain capability: Equipped with all-wheel drive and differential locks, they can operate stably on muddy or gravel roads with slopes ≤30°.
Waterproof design: The enclosed operator cab and waterproof electrical system allow continuous operation in moderate rain (heavy rain conditions require shutdown for maintenance).
Exception scenarios: In extreme weather conditions such as typhoons or blizzards, operations must cease in accordance with construction safety regulations, and equipment protection measures must be implemented.
Q3: How is the accuracy of concrete mix ratios ensured in self-loading mixers?
A: The equipment achieves precise mix ratios through three technical safeguards:
Electronic weighing system: Built-in high-precision sensors continuously monitor the weight of sand, gravel, cement, and water, with error control within ±2%.
Programmable mixing programme: Supports storage of over 10 mix ratio schemes (e.g., C25 floor concrete, C40 beam and column concrete), with one-click recall for automatic execution.
Dynamic monitoring function: Some high-end models are equipped with IoT modules, allowing real-time viewing of mix data and mixing progress via a mobile app, with automatic alerts in case of abnormalities.
Q4: Are the maintenance costs of self-loading mixers higher than those of traditional equipment?
A: Overall maintenance costs are lower, for the following reasons:
Simplified structure: No loader buckets, conveyor belts, or other wear-prone components, with mechanical connection components reduced by over 50%, resulting in fewer potential failure points.
Extended maintenance intervals: Engine and transmission maintenance intervals are 500 hours (compared to 200 hours for traditional equipment), reducing maintenance frequency by 3-4 times per year.
Parts compatibility: Core components (such as hydraulic pumps and motors) use standardised designs, compatible with mainstream brand parts, reducing procurement costs by 20%.
The self-loading concrete mixer is not only an upgrade in equipment, but also a revolution in construction concepts. With the advent of the smart construction era, early adoption of new technologies will be key to maintaining competitiveness. We offer free consultation services. Please contact us for a personalised solution.
