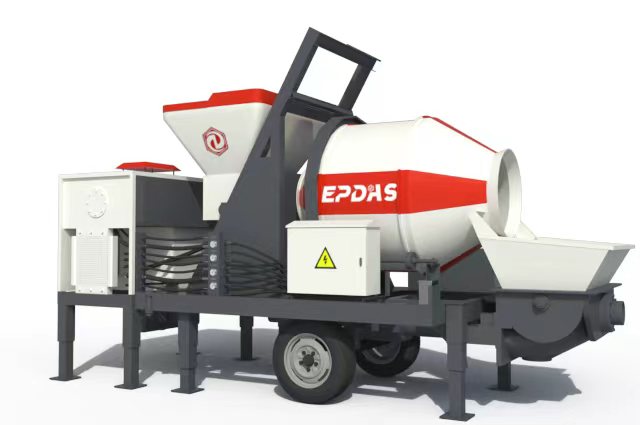

EPDAS concrete mixer pump is a highly efficient construction machine, which integrates concrete mixing and pumping functions. It can perform concrete material loading, mixing, conveying, and pouring operations on one machine. The entire process is automated and continuous, significantly enhancing construction efficiency.
EPDAS concrete mixer pump is helping global users achieve efficient, economical and reliable concrete pouring work under various construction conditions. Choosing a suitable manufacturer is very important for your construction. If you need to know more about EPDAS mechanical equipment, please contact our team at any time.
Main Components Of A Concrete Mixer Pump
Mixing System
The mixing system adopts a compact twin horizontal shaft design. Its wear-resistant blades ensure efficient, stable, and uniform discharge.
Feeding System
The feeding system adopts a hydraulic lifting hopper feeding design. And is equipped with wireless remote control operation, which is stable and efficient.
Pumping System
The pumping system adopts a large-diameter conveying pipeline design, and supports multi-stage pumping pressure regulation to ensure smooth long-distance concrete transportation.
Power System
The power system is available in two options: diesel and electric. Choose international brands for reliable operation and extended service life.
Control System
The control system adopts remote control and touch button interaction control. It can switch between mixing and pumping modes with one click, and the entire machine operation can be completed by one person.
Chassis and Mobility System
The chassis and mobile system balance stability and maneuverability, and they are equipped with high-performance thickened tires to adapt to various construction terrains.

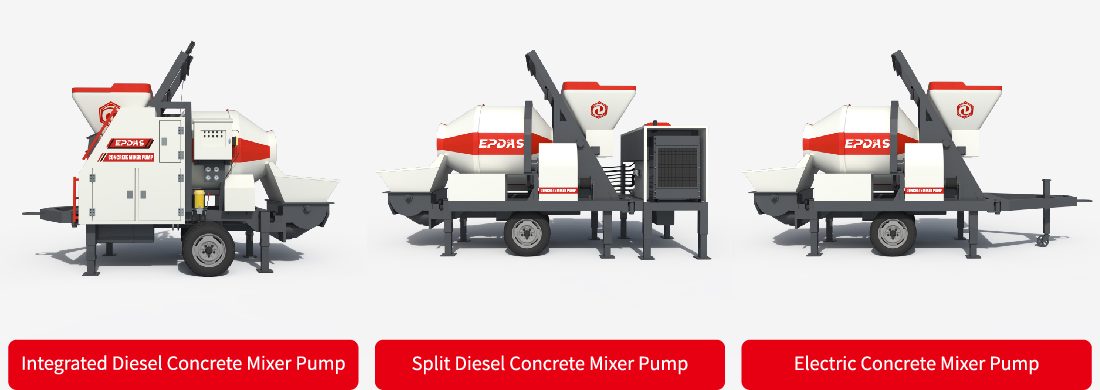

Types of Mobile Concrete Mixer Pumps
EPDAS offers three main types of concrete mixer pumps for sale, available in both diesel and electric options. Each type of this equipment features its own popular models, with different configurations and advantages. You can select the appropriate concrete pump mixer based on your project requirements.
| Model | Difference | Packing |
| Integrated Diesel Concrete mixer pump | Smaller size | 20GP |
| Split Diesel Concrete mixer pump | Larger size | 40HQ |
| Electric Concrete Mixer Pump | Different driving force | 20GP |
Concrete Mixer Pump for Different Scenarios
EPDAS concrete mixer pump features stability, portability and high efficiency. It comes with multiple models and can adapt to various working sites. Whether it’s remote mountainous areas or large-scale urban projects, our equipment is continuously contributing to creating greater work value.
Rural Housing Construction
The concrete mixer pump, in response to issues such as rural roads and narrow bases, features a compact design that enables flexibly moved on site, avoiding manual handling.
Urban Building Construction
The construction of urban buildings using concrete mixer pumps, combined with hundreds of meters of delivery pipelines, enables pumping operations for high-rise construction projects.
Infrastructure Construction
Concrete mixer pumps are used in infrastructure construction such as roads, bridges, and tunnels. They can continuous pumping of large-volume concrete, shortening the construction cycle.
Water Conservancy Construction
In water conservancy construction, mobile concrete mixer pump often requires extensive and long-distance operations. Combined with high-pressure technology can be accomplished.
Workflow of the Concrete Mixer Pump
Feeding Stage
Concrete materials are fed into the hopper wit a loader or manually. The hopper, after being lifted and moving back and forth, is conveyed to the feeding port and awaits stirring.
Mixing Stage
The aggregate is fed into the mixing drum for forward, uniform mixing. After thorough mixing, discharge the concrete mixture in reverse.
Filtering Stage
After mixing, the concrete enters the filter hopper. The filtration stage is mainly responsible for removing impurities that may exist in the concrete.
Pumping Stage
Under the action of pumping pressure, concrete flows along the conveying pipeline to the end nozzle. And precisely reach the designated construction site.
Technical Data
| ITEM | DJBT50-10-85 | DJBT40-10-82 | DJBT30-08-76 | EJBT30-08-37 | |
| Theoretical concrete pumping | 48 m³/hr | 40 m³/hr | 32 m³/hr | 30 m³/hr | |
| Max. Concrete pumping pressure | 10 MP | 10 MP | 8 MP | 8 MP | |
| Main engine | Diesel engine: YUCHAI 85KW | Diesel engine: WEIFANG 82KW | Diesel engine: WEIFANG 76KW | Electric motor: 37KW | |
| Main oil pump | KAWASAKI 112 | KAWASAKI 112 | KAWASAKI 112 | JINDA | |
| Main oil cylinder diameter/stroke | Φ100/800 mm | Φ100/800 mm | Φ90/580 mm | Φ90/580 mm | |
| Concrete cylinder diameter/stroke | Φ180/800 | Φ180/800 | Φ180/580 mm | Φ180/580 mm | |
| Theoretical pump distance | Height: 70 m Length: 250 m | Height: 60 m Length: 250 m | Height: 50 m Length: 200 m | Height: 50 m Length: 200 m | |
| Hydraulic pump set | HUADE (CN) | HUADE (CN) | HUADE (CN) | HUADE (CN) | |
| Hydraulic valve set | TAIFENG (CN) | TAIFENG (CN) | TAIFENG (CN) | TAIFENG (CN) | |
| Lubricating system | Automatic hydraulic | Automatic hydraulic | Automatic hydraulic | Automatic hydraulic | |
| Concrete mixer volume | 450L per tank | 450L per tank | 450L per tank | 450L per tank | |
| Max. Aggregate size | 35 mm | 35 mm | 35 mm | 35 mm | |
| Aggregate lifting volume | 500L per hopper | 500L per hopper | 500L per hopper | 500L per hopper | |
| Concrete slump | 160-220 mm | 160-220 mm | 160-220 mm | 160-220 mm | |
| Controller | Wireless / Cabinet-buttons | Wireless / Cabinet-buttons | Wireless / Cabinet-buttons | Wireless / Cabinet-buttons | |
| Main electric components | CHINT (CN) | CHINT (CN) | CHINT (CN) | CHINT (CN) | |
| Machine weight | 5400 kg | 5300 kg | 5200 kg | 5000 kg | |
| Machine Dimension | Integrated (20GP pack) | 4500*2100*2300 | 4500*2100*2300 | 4500*2100*2300 | 4500*2200*2800mm |
| Split type (40HQ pack) | 5600*2100*2300 | 5600*2100*2300 | 5600*2100*2300 | / | |
| Diameter of concrete pipe | Φ125 mm | Φ125 mm | Φ125 mm | Φ125 mm | |
| Length of concrete pipe | 100 m | 100 m | 100 m | 100 m | |
Why Invest In A Concrete Mixer Pump?
Selecting a concrete mixer pump optimizes the construction process by integrating material feeding, mixing, and pumping into one machine, enabling continuous and efficient construction operations. It can operate automatically to achieve faster and more continuous concrete pouring.
Considering long-term operating costs, investing in a concrete mixer with pump can save money. And it no separate mixer or pump is required. Additionally, the required labor and transportation costs are lower.
The overall investment is relatively small, and the service life is as long as about 20 years. During its own usage period, it can also be rented out to others to collect costs, enjoying a relatively high profit margin.
Price of Concrete Mixer Pump
The price of concrete mixer pump varies based on model configuration, output capacity, power type, and customization requirements. While maintaining outstanding performance, it also offers reasonable price options. EPDAS can provide you with a tailor-made quotation plan based on your specific construction requirements. The following prices are for your reference:
| Model | Price |
| EJBT (Electric-motor Driven) | $18,000-$20,000 |
| DJBT (Diesel-engine Driven) | $24,000-$25,000 |

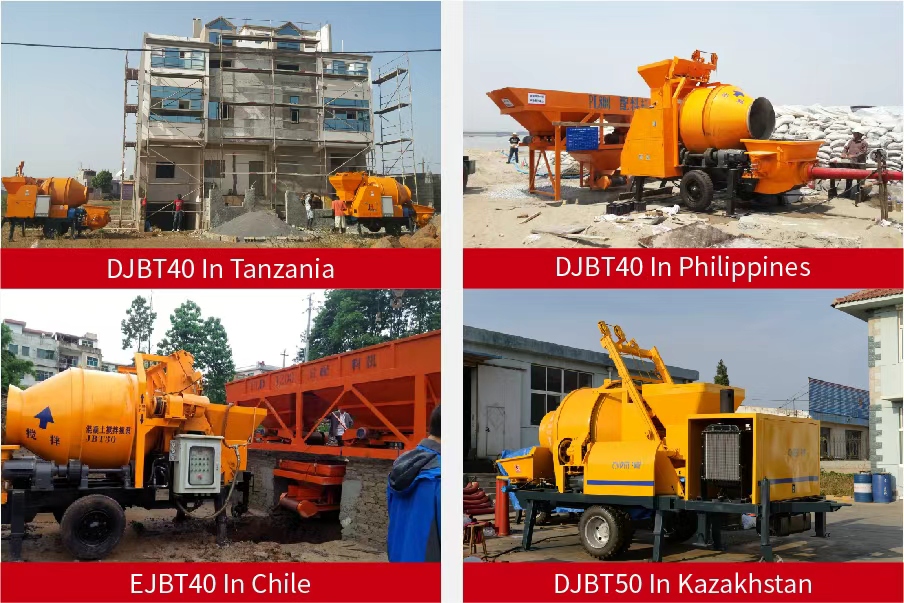

Our Concrete Mixer Pump Global Cases
EPDAS ‘concrete mixer pumps are constantly participating in important global engineering projects, serving infrastructure construction in multiple regions. Regardless of project scale, EPDAS deliver efficient construction solutions and comprehensive technical support to ensure clients achieve high-quality concrete production and pumping in any environment.

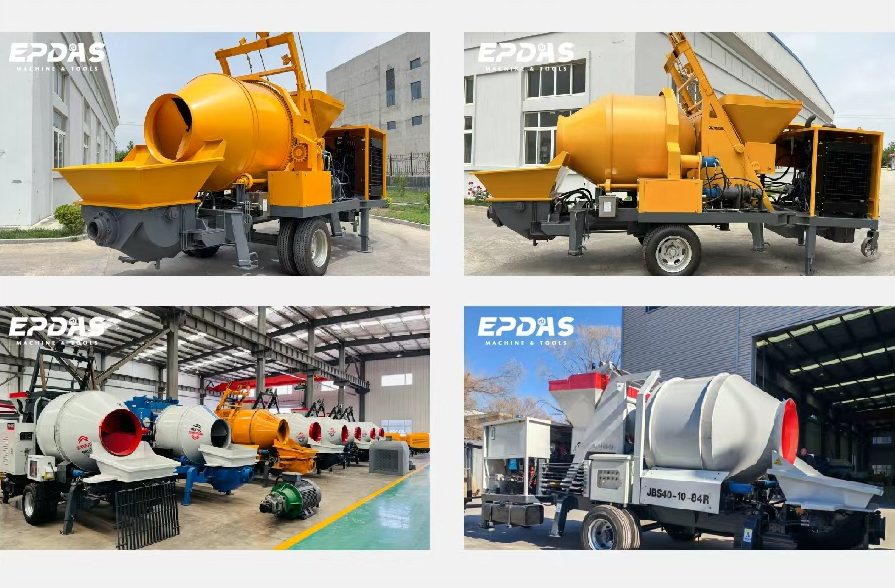

Customer Ordered Machines
EPDAS concrete mixer and pumps have been exported to multiple countries, with each unit delivering exceptional performance and high stability for customer projects. Since delivery, the mixer pump has operated continuously across multiple projects, demonstrating consistent reliability.

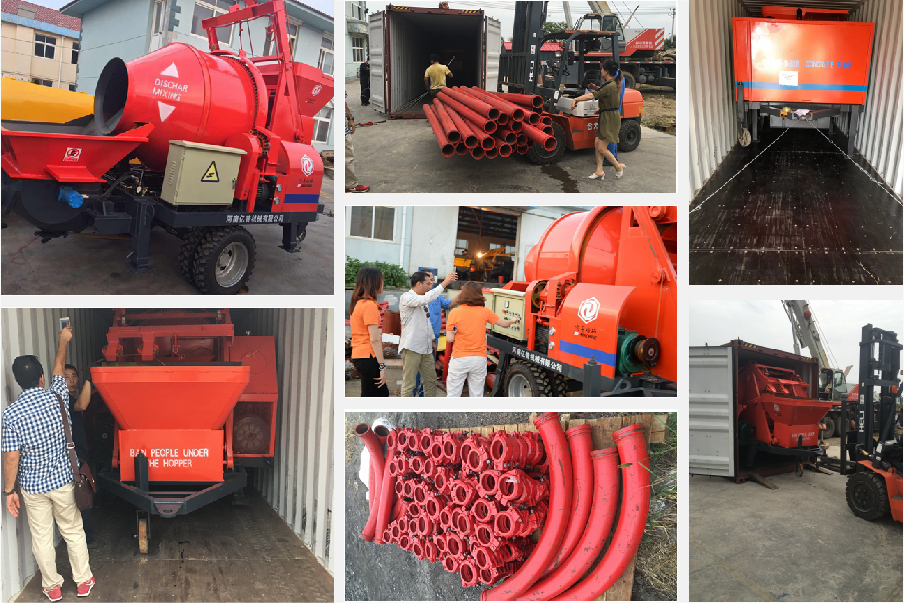

Our Packaging ＆ Shipping
EPDAS offers professional transportation packaging services. A comprehensive inspection, marking and reinforced packaging will be carried out before shipment. Ensure the safety and integrity of the concrete mixer pump during transportation.
International Quality Assurance
Global Service System
Professional Customized Design
Stable Supply Resources
