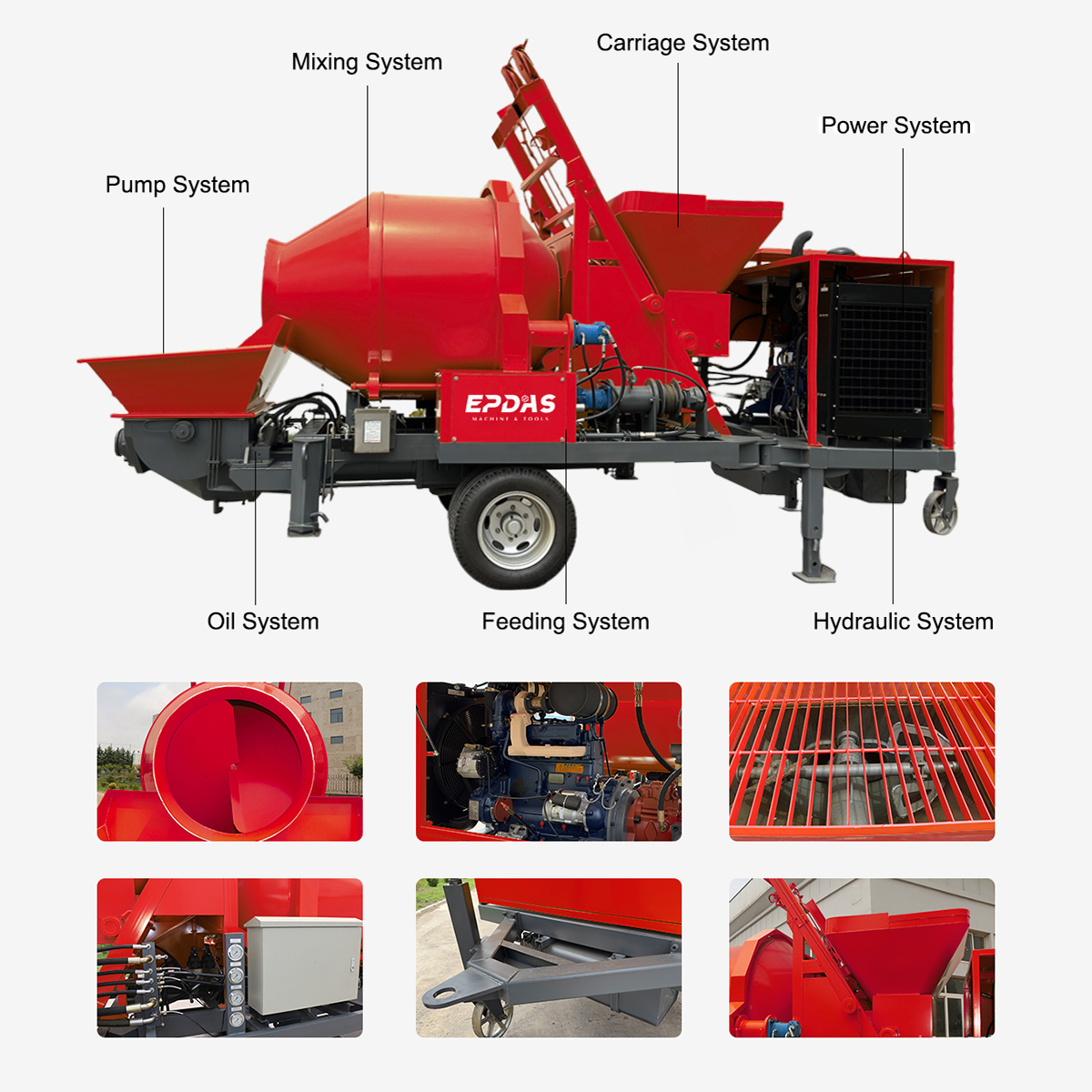

▶ Main Components Of A Concrete Mixer Pump
Mixing System
Concrete mixer and pumping machine mixing system is responsible for mixing the raw materials (cement, sand, aggregate, water) to form concrete. The mixing blades are attached to a shaft that rotates inside the drum, mixing the concrete ingredients evenly.
Pumping System
The pumping system is responsible for delivering the mixed concrete to the desired location. The concrete is pumped through the pipes using a piston or plunger that reciprocates in a cylinder. The pumping action is generated by a hydraulic system.
Power System
The power system provides the energy required to operate the concrete mixer pump. The system is driven by a diesel engine or electric motor. The diesel engine drives the mixing drum and pump, while the electric motor variant requires a reliable power source.
Hydraulic System
The mixing and pumping action of the concrete mixer is powered by a pump. It consists of a hydraulic pump, hydraulic cylinder, valves and pipes. The hydraulic pump converts mechanical energy into hydraulic pressure.
Electrical System
Controls the operation of the mobile concrete mixer with pump systems. Includes control panel, switches, sensors and other electrical components. Provides power to the motor or engine that drives the mixing blades and hydraulic pump.
Feeding System
The feed system is responsible for loading the raw materials (cement, water, aggregates) into the mixing drum. The system usually includes a charging hopper, which is usually designed to easily load and unload ingredients.

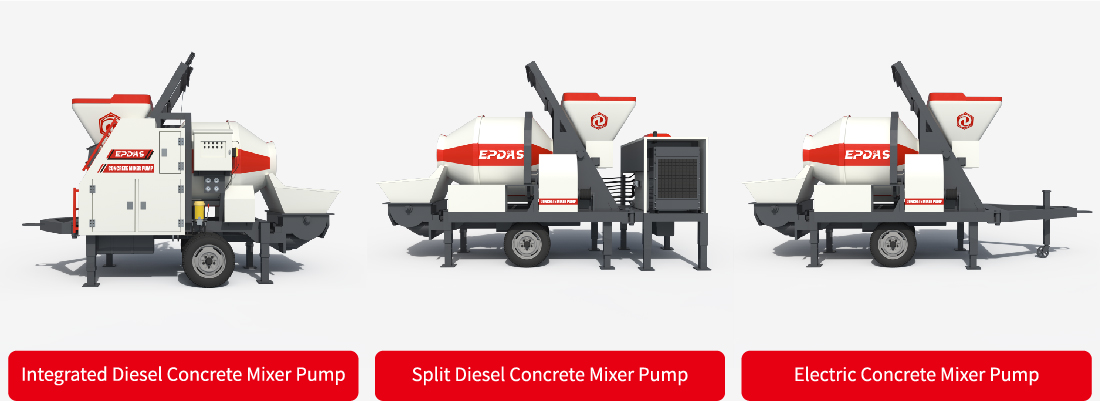

▶ Diesel Engine & Electric Motor Differences
When it comes to cement mixer with pump, the power system can either be driven by a diesel engine or an electric motor, each with its own set of advantages and limitations. The choice between a diesel engine and an electric motor depends on factors such as the work environment, fuel availability, power needs, and cost efficiency.
Model |
Electric Motor |
Diesel Engine |
Power Source
|
Cement mixer with pump is mainly driven by electric energy. Electric energy is clean and efficient. The power source of electric all-in-one machines is usually a battery pack, which can provide a continuous supply of electric energy.
|
Diesel concrete mixer with pump machine uses diesel as fuel and generate power by burning diesel. Diesel engines have a higher power output, and diesel engines are more suitable for outdoor applications where electricity may not be available.
|
Performance characteristics
|
Electric concrete mixer pump has the characteristics of fast response and can reach maximum speed and torque output in a short time. The structure is relatively simple and the maintenance cost is low.
|
It has a high power output capacity and are suitable for occasions that require high power output. Diesel engines have good fuel economy and can maintain high fuel efficiency during long-term operation.
|
Application Areas
|
It is suitable for occasions with high environmental protection requirements, such as urban construction, food processing, medical and health fields. It is suitable for occasions that require frequent starting and stopping.
|
Diesel concrete mixer and pumping machine is suitable for occasions where high power output is required, such as agricultural machinery, construction machinery, ships and other fields. Especially in rural or remote areas where power supply is unavailable. |
Cost and Initial Investment |
The initial purchase cost of mobile concrete mixer pump may be high, but the operating and maintenance costs are relatively low. The life and performance of the battery pack have an important impact on the operating cost. | The initial cost of the diesel engine concrete mixer with pump is usually higher because the engine is complex and requires additional components such as a fuel tank and exhaust system. But in areas where electricity is expensive, it will be more cost-effective. |
▶ Advantages of Concrete Mixer with Pump
Improve efficiency & save costs
Portable concrete mixer pump significantly increase the efficiency of the concrete mixing and pumping process. It is able to mix and pump concrete simultaneously, reducing the time required to complete these tasks compared to using separate machines. At the same time, labor costs are reduced by reducing the number of workers required to operate the equipment.
Mobility and flexibility
Mobile Concrete mixer pump is designed to be mobile, making it easy to transport to different construction sites. Its flexibility allows it to be used in a variety of environments, including remote and inaccessible areas. It can handle different types and sizes of concrete aggregate and are suitable for a variety of construction projects, including the construction of four- to six-storey buildings, bridges and small construction sites.
Automate and streamline operations
Concrete mixture pump is equipped with advanced control systems that can integrate multiple functions, including mixing, pumping, metering, etc., to achieve automated control of the entire concrete operation process. Operators can easily set various parameters such as mixing time, pumping speed, etc. The system also has an automatic adjustment function, which can automatically adjust parameters according to actual needs, reducing the difficulty and complexity of operation.
▶ How Much Is A Mobile Concrete Mixer Pump?
The concrete mixer with pump price varies depending on many factors, such as brand, model, configuration, function, and market supply and demand. When purchasing, you should choose according to your actual needs and budget. The following are the EPDAS concrete mixer pump price:
Model | Price |
DJBT40 | |
DJBT60 | |
JBT30 | |
JBT40 |

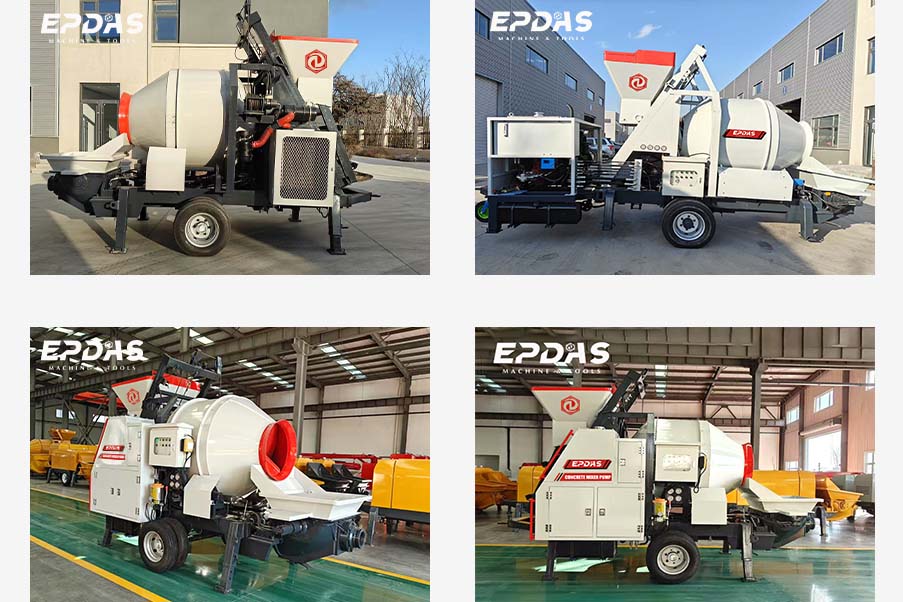

▶ Cases Of Concrete Mixer Pump
With over 40 years of experience, EPDAS is a leader in manufacturing and exporting concrete machinery, offering customized solutions to meet your specific requirements. Our comprehensive range of services includes technical consultancy, competitive quotation, on-time product delivery, spare parts supply, expert troubleshooting and repairs.

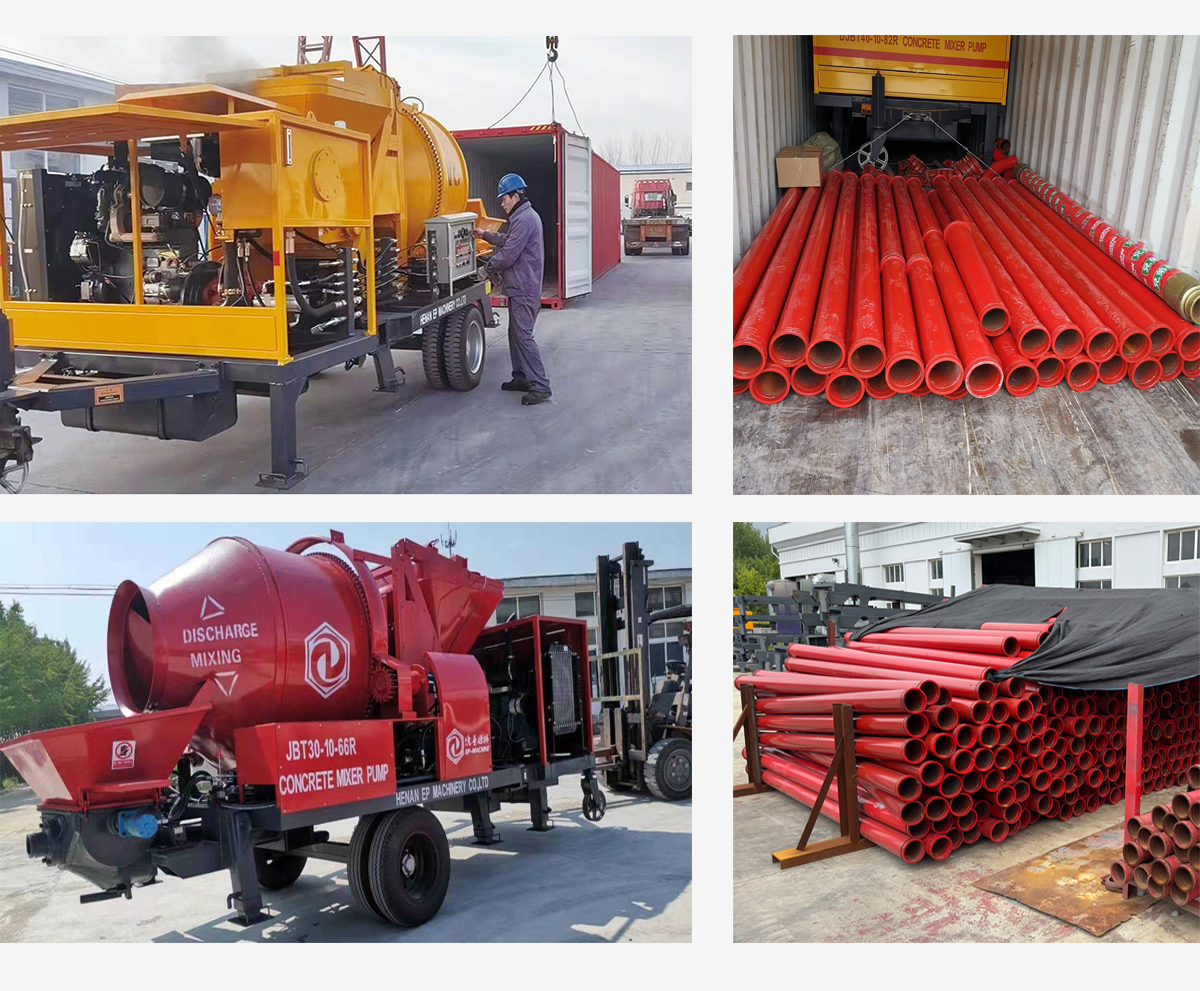

▶ Packing & Delivery
Our packaging process ensures that the equipment is protected and secured during transport, carefully disassembling components and wrapping vulnerable parts such as pump motors, hydraulic systems and control panels in protective materials such as foam padding or stretch film.
Larger components such as mixing drums and pump arms are often placed in custom crates or metal frames to prevent damage during transport. The entire unit is securely secured with metal straps or wooden brackets to prevent any movement during transport, ensuring it arrives intact.
▶ Technical Data
Item | DJBT30-JZC350 | DJBT40A-JZC450 | JBT30 | JBT40 |
Theoretical output (m3/h) | 30 | 40 | 30 | 40 |
Max. concrete pumping pressure (MPa) | 10 | 10 | 10 | 10 |
Power type | Diesel engine | Diesel engine | Motor | Motor |
Main oil pump | Jinda | Kawasaki | 37 | 45 |
Concrete cylinder diameter x stroke (mm) | Φ140×1000 | Φ180×1000 | Jinda | Kawasaki |
Main oil cylinder diameter x stroke (mm) | Φ80×1000 | Φ100×1000 | 71 | 112 |
Theoretical delivery distance (m) | 120/400 | 140/500 | 120/350 | 160/500 |
Hopper capacity (L) | 550 | 550 | 550 | 550 |
Max. aggregate diameter (mm) | 20 | 30/40 | 20/30 | 30/40 |
Inside diameter of delivery pipe (mm) | Φ100 | Φ125 | Φ100 | Φ150 |
Loading capacity of the mixer (L) | 560 | 720 | 560 | 720 |
Unloading capacity of the mixer (L) | 350 | 450 | 350 | 450 |
Mixing motor (kw) | 5.5 | 5.5 | 5.5 | 5.5 |
Hoisting motor (kw) | 4.5 | 4.5 | 4.5 | 4.5 |
Dimension: length x width x height | 6000x2300x3150 | 6000x2100x2800 | 4500x2200x2800 | 4800x2200x2800 |
Total weight(kg) | 5000 | 6000 | 5000 | 5500 |
