Home > Concrete Batching Plant > Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
EP mobile concrete batching plant adopts modular design with excellent mobility for rapid deployment. Its containerized structural design allows for quick disassembly and assembly of the entire machine, significantly saving relocation time and costs. This highly flexible configuration is particularly suitable for temporary works with short construction periods, projects requiring multiple work surfaces in rotation, and infrastructure construction in remote areas.

Our mobile concrete batch plant can provide high-quality concrete continuously and stably. According to the model, it is divided into MCBP series, YHZM series, and YHZS series. Each mobile station is classified into different models based on production capacity,with a maximum output range of 25 m3/h to 180 m3/h to meet the needs of different projects. When making specific choices, comprehensive consideration should be given to the project scale and concrete requirements.
Mobile Concrete Batching Plant
Mobile Concrete Batch Plant

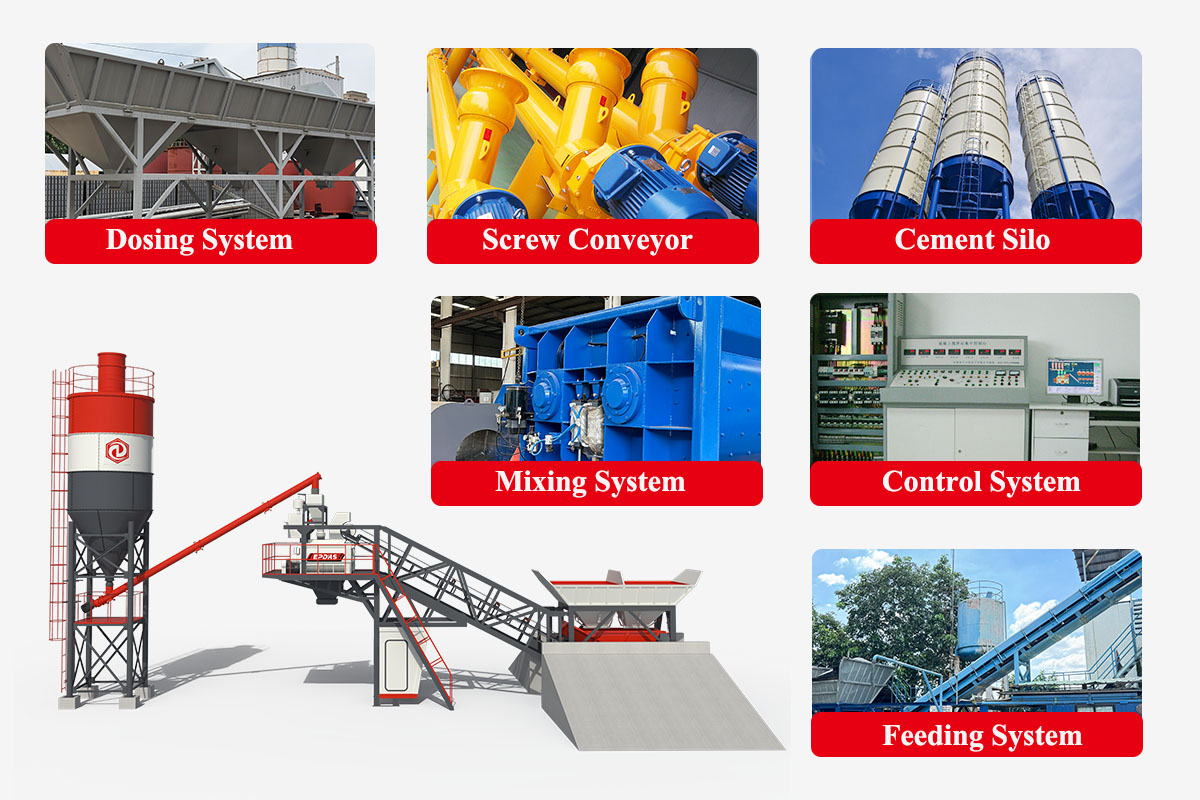

Main Components Of  Mobile Batching Plant

Mixing System

Common types of mixers include double shaft mixers and vertical shaft mixers. They are the core part of mobile cement batching plant, used to mix raw materials such as aggregates, cement, and water evenly.

Ingredient System

Including storage bins, measuring devices, and conveying devices, used for precise measurement and proportioning of various raw materials such as cement, sand, stones, etc., it can ensure accurate concrete supply.

Weighing System

The system mainly includes a hopper, weighing sensors, and electrical control system, responsible for precise measurement of raw materials, ensuring the stability of concrete formula. It has a high degree of automation and is easy to maintain.

Feeding System

Common conveying equipment includes belt conveyors, screw conveyors, etc.The conveying system is responsible for transporting raw materials such as aggregates, cement, water, etc. from storage locations to the mixing host.

Cement Storage System

The cement silo uses a fully enclosed steel structure for storage, and the cement is transported to the mixer through a screw conveyor to prevent moisture and pollution.

Control System

The control system is responsible for the automation operation of the entire portable concrete batch plant,and controls and adjusts it to achieve precise proportioning and production scheduling.

Mobile Concrete Batching Plant

How Does A Mobile Concrete Batch Plant Work?

Mobile concrete plants produce fresh concrete on the construction site through precise batching and mixing processes. Firstly, raw materials such as aggregates, cement, water, and additives are sent into their respective storage bins or hoppers through a conveying system,accurately measured according to the formula, and mixed.

The prepared raw materials are sent into the mixing machine for mixing. The mixing host uses its internal mixing blades to rotate at high speed, thoroughly mixing various raw materials to produce uniform concrete.After the mixing is completed, the control system will automatically open the discharge door of the mixing machine, discharge the concrete, and send it to the construction site for pouring.





 Advantages of  Mobile Concrete Plant

Flexibility And Mobility

The bottom of the portable concrete batching plant is equipped with tires, which are transported by trucks and can be easily transferred between different construction sites. Truly achieving mobility convenience, improving construction efficiency, and reducing transportation costs.

Quick Setup And Operation

The ready mix concrete plant adopts a modular design, as it is pre assembled or pre configured, it can be started and run in a short period of time. The device results are independent of each other, facilitating quick installation and transfer, and improving space utilization.

High Quality Concrete

Mobile batching plant is equipped with advanced control systems that can accurately measure and mix raw materials; Adopting a dual axis mixer with strong operating power, it can achieve rapid production of concrete and ensure high-quality concrete supply.

Cost Effectiveness

Rmc mobile batching plant not only reduces transportation costs, but also has significant advantages in terms of equipment prices. Our small concrete plants have high production capacity and affordable equipment prices, which can meet production requirements and improve economic efficiency in projects with low budgets.

How to choose the right mobile concrete batching plant?

Choosing the right mobile concrete plant can not only compare the production capacity. The configuration of the equipment should match your project needs, transportation conditions, installation site and expected operating costs.

Determine the required concrete output

Estimate hourly concrete requirements, daily production targets, and estimated operating hours. EPDAS offers several models for projects with different production needs. Please select the model based on the actual output required, not just the theoretical capacity.

Consider transportation and site conditions

Evaluate road access conditions, available operating space, transportation size restrictions, and site transition frequency. For projects with compact layouts, integrated mobile mixing plants may be more suitable; for projects with higher output requirements, other mobile configurations may be more suitable.

Compare Installation Requirements

Confirm if the selected model requires concrete foundations, site leveling, external piping connections, or field assembly. Different models and configurations have different installation requirements, so it is important to confirm these details before ordering.

Examine the type of mixer and the accuracy of ingredients

Mixer configuration, aggregate feeding method, weighing system and control options all affect production performance. Please select the configuration based on the concrete mix design, required production and local project standards.

Assess the total project cost

Considerations should not be limited to the initial price of the equipment. Transportation, installation, labor, power, maintenance, spare parts and potential transfer costs should be included in your investment cost calculation.

Exclusive Configuration Scheme for Consulting Project

Please provide your required production capacity, project location, concrete use, site conditions and preferred configuration. EPDAS can help you compare the applicable models and formulate a quotation plan according to your actual project needs.

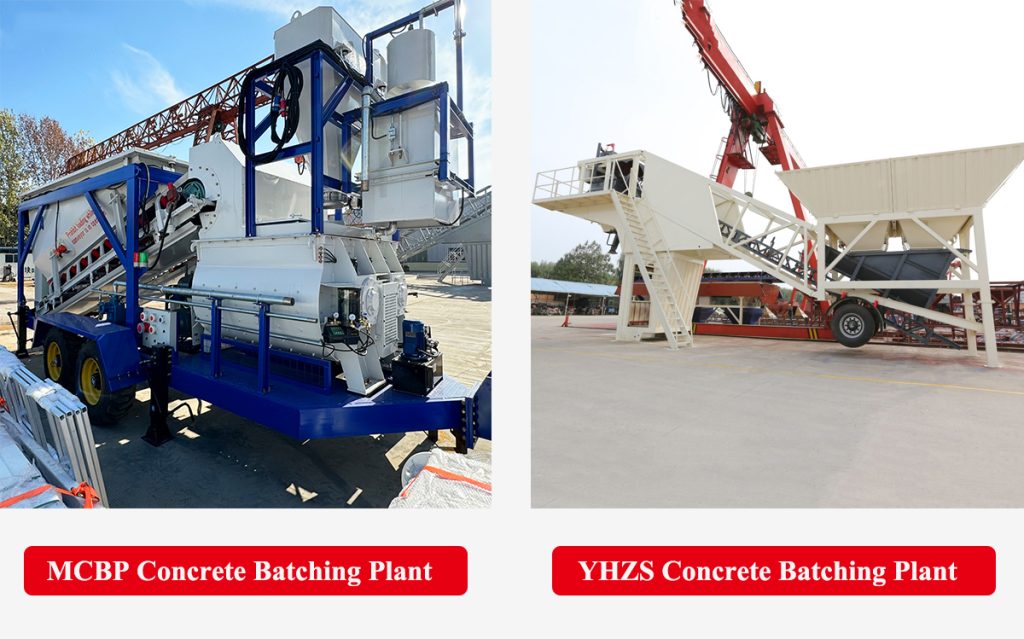

YHZS vs MCBP: What is the difference?

YHZS Mobile Concrete Batch Plant

1. YHZS concrete mixing plant has a complete range of models, covering the mainstream output of 25-100, and the measurement is more accurate than MCBP.

2. The discharge height is 3.8 meters, which can be normally entered and exited by the mixer truck.

3. When it is fixed for work, it is a stationary concrete batching plant. But compared with HZS, especially the belt station of HZS60 and above, YHZS mobile concrete plant has a small footprint and a high actual concrete output, because the aggregate conveying distance is short and there is no intermediate aggregate waiting warehouse!

MCBP Mini Mobile Batching Plant

1. Higher production efficiency, truly realizing the convenience of mobility. The length of the entire station is less than 9m, width is less than 2.2m, height is less than 3m, and weight is less than 8t in the mobile state. With only one trailer, users can transfer the mixing station at any time.

3. The wiring and debugging of the entire mini batching plant system have been completed before leaving the factory. Users only need to prepare an external power supply + water source + additive source, and the material can be started within one hour after the transfer.

4. MCBP35 main station + spiral + bag breaking bucket + unloading belt, only 1 40HQ transportation is required, saving freight and customs clearance fees!

Mobile Concrete Batching Plant

Installation and Technical Support of Mobile Concrete Plant

Successful installation and commissioning is critical to the performance of a concrete mixing plant. Confirm equipment configuration according to project requirements and local site conditions prior to equipment shipment.

EPDAS provides technical assistance to help customers prepare for installation and commissioning. Depending on the model selected and service agreement, support may include:

  • Equipment configuration confirmation before shipment.
  • Installation guidance is provided by experienced engineers.
  • Guidance on requirements for electrical connections and auxiliary equipment.
  • Commissioning assistance and operating instructions.
  • Spare parts support and technical troubleshooting.

The installation process and site preparation requirements of different models are different. Before placing an order, please be sure to confirm with our technical team about basic requirements, power and water supply, material storage and installation scope.

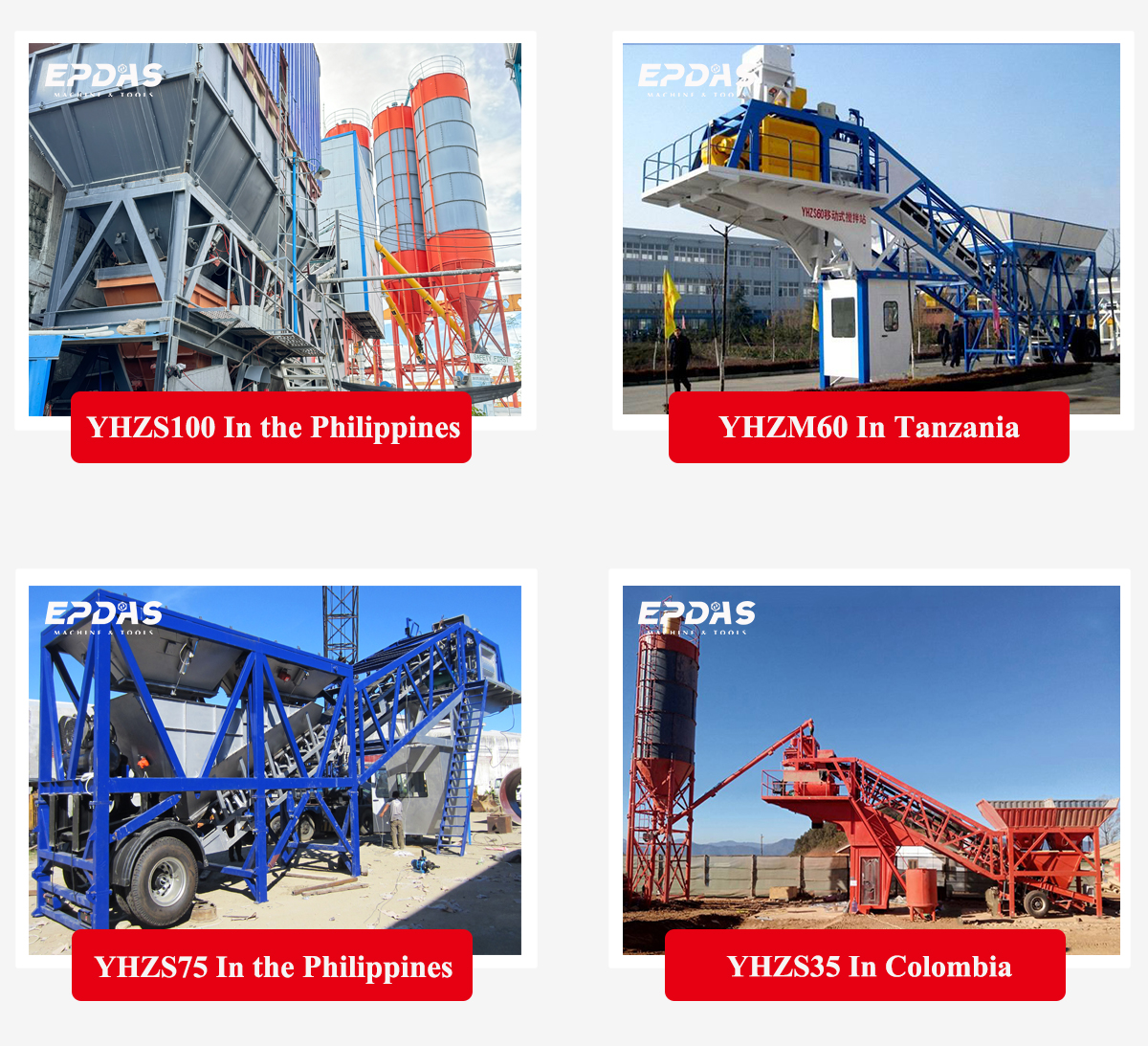

Cases Of  Mobile Concrete Plant

EPDAS, as a concrete batching plant manufacturer with over 40 years of production experience, our products have been sold to 168 countries, covering Asia, Africa, the Middle East, and South America, and have been widely recognized internationally. Our mobile mixing plant demonstrates superior adaptability in the face of extreme weather conditions and urgent project deadlines. Choose EPDAS to receive personalized customization services and professional technical support!

Mobile Concrete Batching Plant



 How Much Is A Mobile Batching Plant?

The price of a mobile concrete batching plant depends on its production capacity, equipment configuration, batching system, mixer type, and optional components. Transportation and installation requirements, as well as local project conditions, may also affect the total investment.

What factors affect the price?

Production capacity: Different models require different mixing, batching, and conveying configurations.

Equipment configuration— including the type of mixer, aggregate bins, batching system, control system, and cement storage solution—will all affect the overall equipment cost.

Transportation requirements: Shipping dimensions, loading arrangements, and the destination will all affect logistics costs.

Installation and Commissioning: When calculating the project budget, it is necessary to account for requirements related to site preparation, utility connections, assembly, and commissioning.

Customization requirements: Special requirements related to local electrical standards, climatic conditions, aggregate types, or project layout may affect the final quotation.

EPDAS offers mobile concrete batching plant solutions tailored to diverse project requirements. Please let us know your desired production capacity, the destination country, and your preferred configuration so that we can provide you with a detailed quotation. The table below lists the models and prices of our best-selling ready-mix concrete batching plants for your reference.

Model Price
MCBP35 $40,000-$45,000
YHZS35 $45,000-$60,000

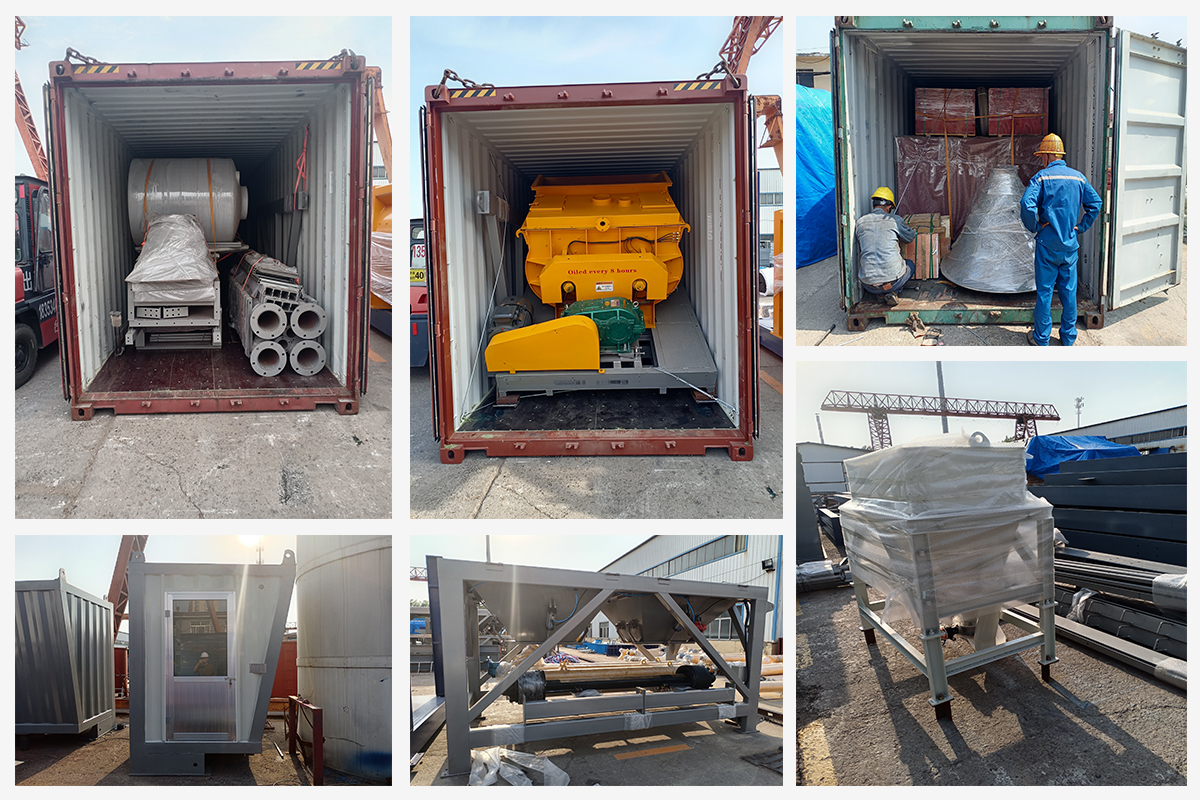

Packing & Delivery



Mobile Concrete Batching Plant



Technical Data



Model YHZS25 YHZS35 YHZS60 YHZS75 YHZS120
Concrete output capacity 15~20m³/hr 20~30m³/hr 40~50m³/hr 60~75m³/hr 80~100m³/hr
Concrete output height (From the ground) 4.0m 4.0m 4.0m 4.0m 4.0m
Central Mixer JS500 JS750 JS1000 JS1500 JS2000
Aggregate bins 2 bins × 6m³ 2 bins × 6m³ 4 bins × 5m³ 4 bins × 5m³ 4 bins × 8m³
Aggregate feeding type By belt By belt By belt By belt By belt
Aggregate weighing accuracy ±2% ±2% ±2% ±2% ±2%
Water/Cement/Additive weighing accuracy ±1% ±1% ±1% ±1% ±1%
Production control type Manual by buttons +

Auto by computer (PC)

Manual by buttons +

Auto by computer (PC)

Manual by buttons +

Auto by computer (PC)

Manual by buttons +

Auto by computer (PC)

Manual by buttons +

Auto by computer (PC)

Chassis & Tyres 1 axle × 4 tyres 1 axle × 4 tyres 1 axle × 4 tyres 1 axle × 4 tyres 1 axle × 4 tyres
Max. travelling speed (Be dragged) 50km/hr 50km/hr 40km/hr 30km/hr 30km/hr
Total power ≈50kw ≈60kw ≈80kw ≈100kw ≈130kw
Optional Parts
Screw conveyor Φ219 × 12000mm Φ219 × 12000mm Φ219 × 12000mm 2 × Φ219 × 12000mm 2 × Φ273 × 15000mm
Cement hopper 2 tons (≈1.5m³) 2 tons (≈1.5m³) 2 tons (≈1.5m³) / /
Cement silo 50 tons 50 tons 80~100 tons 2 × 100 tons 2 × 100 tons



Model MCBP25 MCBP35 MCBP50
Concrete output capacity 20~25m³/hr 30~35m³/hr 50~60m³/hr
Concrete output height (From the ground) 0.5m 0.5m 0.5m
Central Mixer JS500 JS750 JS1000
Aggregate bins 2 bins × 3m³ 2 bins × 3m³ 2 bins × 4m³
Aggregate feeding type By 2 belts By 2 belts By 2 belts
Aggregate weighing accuracy ±4% ±4% ±4%
Water/Additive weighing accuracy ±2% ±2% ±2%
Cement weighing accuracy ±1% ±1% ±1%
Production control type Manual by buttons + Auto by touch screen Manual by buttons + Auto by touch screen Manual by buttons + Auto by touch screen
Chassis & Tyres 2 axle × 2 tyres (14-17.5) 2 axle × 2 tyres (14-17.5) 2 axle × 2 tyres (14-17.5)
Max. travelling speed (Be dragged) 80km/hr 80km/hr 60km/hr
Total power ≈45kw ≈57kw ≈64kw
Optional Parts
Screw conveyor Φ219 × 9000mm Φ219 × 9000mm Φ219 × 9000mm
Cement hopper 2 tons (≈1.5m³) 2 tons (≈1.5m³) 2 tons (≈1.5m³)
Cement silo 50 tons 50 tons 50 tons

FAQ

Q1: What is a mobile concrete batching plant?

The mobile concrete mixing plant is the 1 concrete production system designed for flexible deployment on the construction site. Depending on the model, it may have an integrated structure or a transportable modular configuration. It is commonly used in road construction, bridge engineering, infrastructure development, and other projects that require on-site production of concrete.

Q2: What is the price of mobile concrete mixing plant?

The price of a mobile concrete mixing plant depends on its production capacity, mixer type, batching system, equipment configuration and optional components. Transportation, installation requirements and customization requirements may also affect the total investment. Please inform EPDAS of your required capacity and destination country to obtain a specific quotation for the project.

Q3: What is the production capacity of the mobile concrete mixing plant?

Production capacity varies by model and configuration. EPDAS offers a wide range of mobile concrete mixing plant solutions, including MCBP and YHZS series models. When selecting equipment, please consider the rated production capacity and the actual output required by the project. Please contact our team to confirm the suitable model and its technical parameters.

Q4: What is the difference between mobile and fixed concrete mixing plants?

Mobile concrete mixing plants are usually suitable for projects that require flexible deployment or transition, while fixed concrete mixing plants are designed for long-term operation in fixed locations. The choice of equipment depends on the project duration, required output, site conditions, transportation costs and installation requirements.

Q5: Does the mobile concrete mixing plant need concrete foundation?

The foundation requirements depend on the specific type, structural design, ground conditions and local installation specifications. Some configurations may require prefabricated foundations or support structures, while other configurations may allow for other installation methods. Be sure to confirm foundation drawings and site preparation requirements with EPDAS prior to installation.

Q6: How long does it take to install a mobile batching plant?

Installation time depends on equipment type, configuration, site readiness, utility connections, and local construction work conditions. Although the integrated design can reduce the workload of on-site assembly, the specific installation progress still needs to be confirmed for each project. EPDAS provides installation guidance and technical support based on selected equipment and service agreements.

Q7: Can mobile concrete batch plant be customized?

Sure. Depending on the model selected, customization options may cover mixer configurations, aggregate batching systems, cement storage schemes, electrical control systems, and other specific project requirements. The customer shall provide the target production, concrete usage, local power supply and site conditions for EPDAS to recommend a suitable configuration.

Q8: What is the difference between MCBP and YHZS series mobile concrete plant?

MCBP and YHZS belong to different mobile mixing plant series, with different structural design and configuration options. There may be differences in transportation arrangements, installation requirements, production capacity and component layout for different models. It is recommended to compare the technical parameters of specific models before making a decision, or contact EPDAS to obtain selection suggestions.

Q9: Does EPDAS provide installation and after-sales support?

EPDAS provides technical support for equipment installation and commissioning according to the selected service plan. Customers can communicate with our team about installation guidance, operation training, spare parts supply and technical troubleshooting before placing an order. Be sure to confirm the support coverage and any on-site service charges in your quotation and sales contract.

Q10: How do I choose the right mobile concrete plant for my project?

When selecting the appropriate model, please consider the required concrete production, project location, concrete use, site conditions, transportation requirements and budget range. In addition, the mixer type, batching accuracy, installation requirements and after-sales support services should be confirmed. Please send the above details to EPDAS for equipment recommendations and quotes.

Mobile Concrete Batching Plant Manufacturer
EPDAS - Top Concrete Plant Supplier

EPDAS, originating from 1978, is a professional concrete plant manufacturer in China. We are committed to providing high-quality and efficient concrete batching plant equipment to meet the diverse needs of global customers.



Customized Services

We provide comprehensive customized services. We will tailor the selection, configuration optimization, and maintenance of cement batching plant according to your specific needs to ensure that the equipment can fully adapt to your construction.



Comprehensive Sales And Service

We provide comprehensive pre-sales, in sales, and after-sales services, offering detailed recommendations for selecting mixing plants, as well as technical support and maintenance services. Our sales team provides online service to answer your questions at any time.



Technical Support

In order to ensure the smooth operation and optimal performance of the equipment, our technicians carefully inspect and adjust the equipment according to the on-site environment and conditions, and go to the construction site for equipment debugging.

Applications Of Mobile Batching Plant
Road Construction

Mobile concrete batch plants are suitable for road construction projects that can quickly deploy concrete, providing stable and continuous concrete supply to ensure the continuity and quality of road paving.

Bridge Application

Portable concrete batch plant can provide high-quality concrete materials for the construction of bridge main structures (piers, abutments, bridge decks), and can directly supply them to the site to ensure the freshness of concrete.

Construction Project

The concrete plant can provide stable concrete supply to meet large-scale construction needs, such as large residential, commercial, and industrial building projects.

Dam construction

In engineering projects such as dams and hydropower stations, mobile cement batching plant can flexibly respond to complex construction environments and ensure continuous supply of concrete near the construction site.

Mining Engineering

The rmc plant is very suitable for remote mining sites for processing and mixing materials such as ore and gravel, ensuring the stability and safety of mining development.

Municipal Engineering

In municipal engineering projects such as urban roads, drainage, and lighting, mobile batch plant can be flexibly deployed to provide support for urban construction with concrete that meets special requirements.

Emergency Repairs

In disaster recovery and emergency repairs, cement batching plant can provide concrete for rebuilding roads, bridges, and other damaged structures.

Industrial Construction

In the construction of industrial plants such as factories, workshops, and warehouses, compact concrete batching plant can quickly provide the required concrete and support industrial production.

Airport Construction

In the construction of airport runways, aprons, terminals, etc., ready mix concrete plant can provide stable concrete to ensure the safety of aviation facilities.
