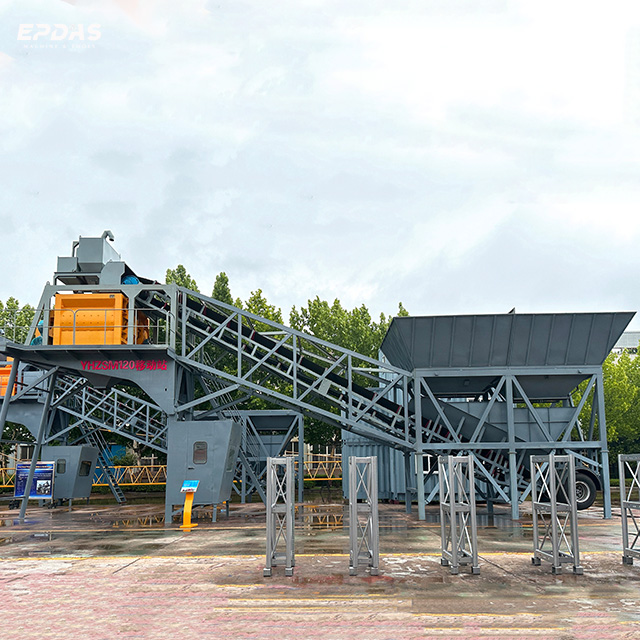

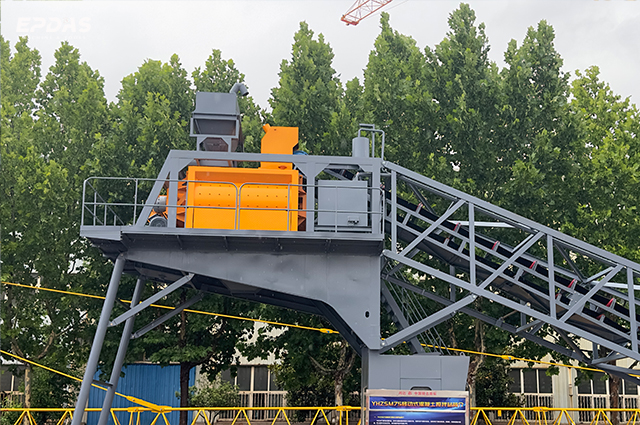

YHZS100 Mobile Concrete Batching Plant
Mobile concrete batching plant is a combination of storing, weighing, transporting, mixing and controlling. The mobile batching plant has features of compact structure and all ready-functions. Adopting modular structuring way enables convenient movement. Ready to run without special foundation and commissioning, which can save installation and commissioning time.
Production Types
Mixer Types
Name:
YHZS100 Mobile Concrete Batching Plant
Theoretical Productivity:
100m3/hr
Concrete Mixer:
JS2000
Share With:
Mobile Concrete Batching Plant
Features
Technical Info
Project
Inquiry
Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
YHZS100 Mobile Concrete Batching Plant
  • Mobile concrete batching plant adopts twin-shaft compulsory concrete mixer as the assorted mixer, which has obvious characteristics like fast mixing, wide mixing range and good concrete quality etc. to satisfy the customers’ requirements.
  • Mobile batching plant adopts the technology of “click to supplement” to ensure the accuracy of dynamic measurement no less than ±1%.
  • Our mobile batching plant is assembled two suits operating devices (touch-screen and computer), and can be operated manually, semi-automatically and automatically, which ensures the working reliability.
  • The mobile concrete mixing plant fully accounted concrete technology enables perfect foundations like: unique ratio deposit, self-compensation of aggregates drop, scale-owing, alarming and revising of over-scale, on-line modifying formula, date saving and query, and report-print and so on.
YHZS100 Mobile Concrete Batching Plant
MODEL YHZS100
Theoretical Productivity 100m3/hr
Concrete Mixer JS2000
Aggregate bin 3bins ×20m3
Aggregate feeding type By belt
Aggregate accuracy ±2%
Water+Cement+ Additive accuracy ±1%
Total power 140kw
Discharging height 4.0m
