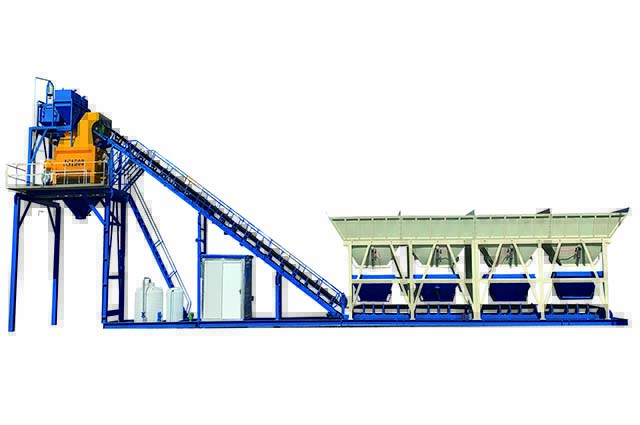

MHZS series free foundation concrete batching plant typically refers to a type of concrete batching plant that doesn't require a fixed foundation and can be set up on a relatively flat and stable surface.This type of batching plant is often used in temporary construction sites or projects where mobility is required.

Production Types

Mixer Types

Name:

Free Foundation Concrete Batching Plant

Productivity:

90m3/hr/120m3/hr/180m3/hr

Central Mixer:

JS1500/JS2000/MAO3000

Quote Now

Send E-mail

Share With:

Features

Technical Info

Project

Inquiry

Free Foundation Concrete Batching Plant

Modular Design: Free foundation concrete batching plants often have a modular design, which means they are composed of separate modules or units that can be easily assembled and disassembled.
Compact Structure: These plants are typically designed to have a compact structure, making them suitable for temporary projects or situations where space is limited.
Quick Installation: One of the main advantages of no foundation concrete plants is the quick and easy installation process. This can save both time and labor costs compared to traditional fixed concrete batching plants.
Automatic Control System: Free foundation concrete plant comes equipped with automatic control systems for precise and efficient operation. It includes computerized control panels, sensors, and software for monitoring and adjusting the mixing process.

Free Foundation Concrete Batching Plant

Model	MHZS90	MHZS120	MHZS180
Central Mixer	JS1500	JS2000	MAO3000
Productivity	90m³/hr	120m³/hr	180m³/hr
Main Structure	Mixing Platform Steel Frame + Free-base Steel Frame
Aggregate Storage	4 bins*8m³	4 bins*12m³	4 bins*20m³
Aggregate Feeding Type	Belt Conveyor (B=800mm, 22kw)	Belt Conveyor (B=1000mm, 37kw)	Belt Conveyor (B=1000mm, 45kw)
Aggregate Waiting Bin Midway	NO	YES	YES
Aggregate Weighing System	4 sets (Independent)	4 sets (Independent)	4 sets (Independent)
Cement Weighing System	2 sets (+ Physical Dust Collector)	2 sets (+ Electrical Dust Collector)	2 sets (+ Pulse Dust Collector)
Water Weighing System	1 set (+ 1.5m³ Plastic Water Tank)	1 set (+ 10m³ Steel-plate Water Tank)	1 set (+ 10m³ Steel-plate Water Tank)
Liquid Additive Weighing System	1 set (+ 2m³ Plastic Liquid Tank)	1 set (+ 4m³ Plastic Liquid Tank)	2 sets (+ 8m³ Plastic Liquid Tank)
Mixing Power	2*30kw	2*37kw	2*55kw
Total Power	113kw	136kw	200kw
Overall Dimension	30m4m10m	36m4.2m12m	46.5m4.3m13m
Overall Weight	28t	35t	42t
Overall Shape	The whole plant is lined up, free foundation design.
