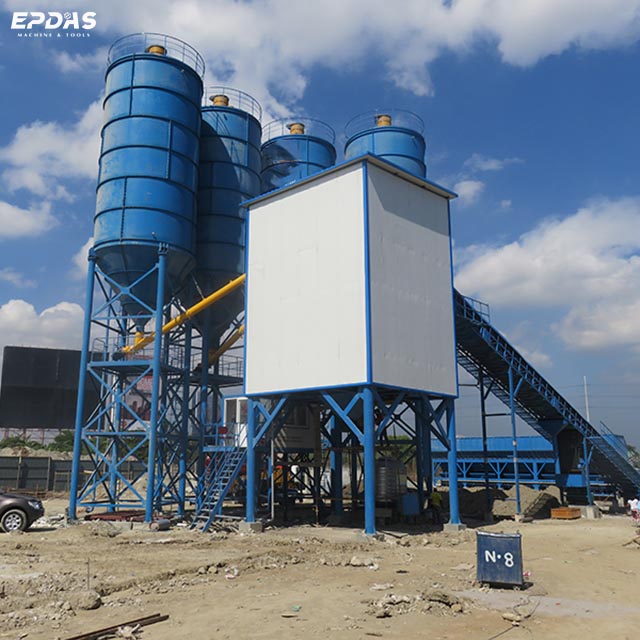

HZS180Q Concrete Batching Plant
HZS series concrete batching plant (belt type) is composed of the mixing machine, material weighing system, material conveying system, material storage system, control system and other subsidiary facilities. The concrete mixing plant enjoys the benefits of large transport distance, high efficiency and low failure rate. With good mixing effect for dry, rigid, plastic and all kinds of concrete proportion, stationary concrete batching plant is widely used in the long duration and site-focused large and medium hydropower project, bridges and other construction projects etc.
Production Types
Mixer Types
Name:
HZS180Q Concrete Batching Plant
Theoretical productivity:
180m3/hr
Feeding mode:
Belt conveyor
Share With:
Concrete Batching Plant
Features
Technical Info
Project
Inquiry
Concrete Batching Plant
Concrete Batching Plant
Concrete Batching Plant
Concrete Batching Plant
Concrete Batching Plant
HZS180Q Concrete Batching Plant
  • Excellent mixing performance: The concrete mixing plant adopts the German technology, with strong mixing performance, stir even, rapid and high productivity. Special made mixer plates and blades, and special shaft bearing and shaft-end sealing design greatly prolong the lifetime of the mixer.
  • Unique no-sticky shaft technology: The concrete batching plant unique design and reasonable allocation of the mixing arms, blades, material feeding points and order greatly avoid the concrete sticky shaft problem.
  • Accurate measurement accuracy: Beautiful and easy modeling, reasonable structure, pleasant color, comfortable operation, convenient maintenance is the guarantee of excellent products.
  • Convenient transportation and installation: Module structure is with compact design. The batcher, mixing section, screw conveyor and cement silos are independent sections. The batching plant disassembly and installation is fast and the transport is convenient.
  • TV monitoring system: According to user’s request, concrete batch plant TV monitor (usually four points) can be installed in order to make real-time monitoring to batching machine, concrete mixer and discharging gate.
HZS180Q Concrete Batching Plant
Model Unit HZS180
Theoretical productivity m3/hr 180
Mixer model JS3000
Mixing motor power kw 2*55
Feeding mode /Belt conveyor
Cycling period s 60
Max. aggregate size mm Ф80
Aggregate bins capacity m3 4*20
Discharging height m 4.0
Aggregate weighing precision ±2%
Power weighing precision ±1%
Water weighing precision ±1%
Additive weighing precision ±1%
