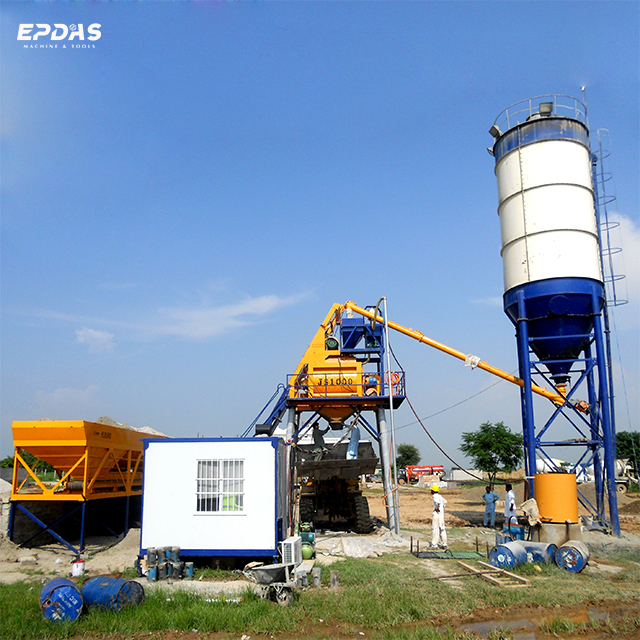

HZS50Q Concrete Batching Plant
HZS series concrete batching plant (bucket type) is the developed product, which is integrated the advantages of a variety of models and advanced technology home and abroad, combined with our years’ experience in the production of concrete mixing equipment. The concrete batch plant enjoys the benefits of small footprint and simple structure. Batching plant is widely used in the hydropower project, airports, roads, bridges and other small and medium scale construction projects and commodities concrete production etc.
Production Types
Mixer Types
HZS50Q Concrete Batching Plant
Theoretical productivity:
Feeding mode:
Hoist bucket
Share With:
concrete batch plant
Technical Info
concrete batch plant
concrete batch plant
concrete batch plant
concrete batch plant
concrete batch plant
HZS50Q Concrete Batching Plant
  • Module structure: Module structure is with compact design. The concrete batching plant batcher, mixing section, screw conveyor and cement silos are independent sections. The disassembly and installation is fast and the transport is convenient. Different arrangement is available for different requirements.

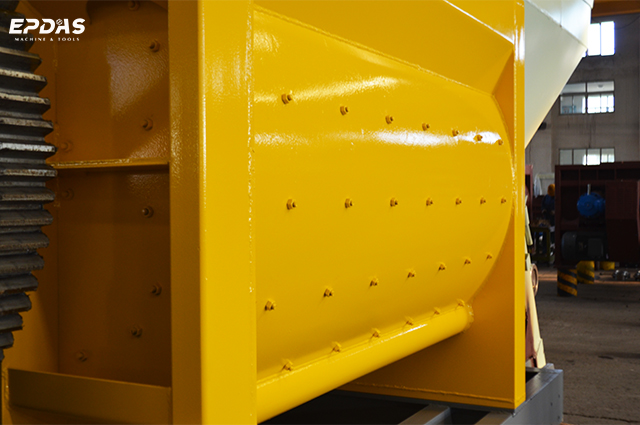

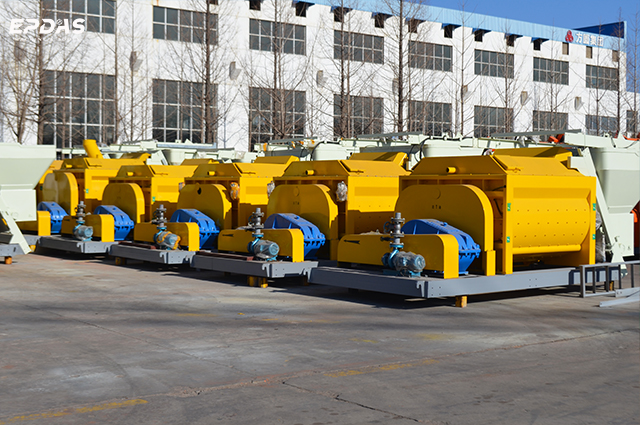

  • Excellent mixing performance: The batching plant equipped with JS twin-shaft mixer, which has excellent performance, short mixing time, good quality mixing result and high production efficiency.
  • Accurate weighing: The weighing unit and control unit of aggregate, power material and liquid material adopt the famous brand, with computer control which can ensure the accurate weighing and stable working performance.
  • Simple operation: The stationary concrete batching plant, adopts industrial computer of PLC automatic control, also with manual operation for option. Dynamic panel display can easy monitor the running situation of each part. The system can save the production data and print the reports.
HZS50Q Concrete Batching Plant
Model Unit HZS50
Theoretical productivity m3/hr 50
Mixer model JS1000B
Mixing motor power kw 37
Feeding mode Hoist bucket
Cycling period s 72
Max. aggregate size mm Ф80
Aggregate bins capacity m3 3*12
Discharging height m 4.0
Aggregate weighing precision ±2%
Power weighing precision ±1%
Water weighing precision ±1%
Additive weighing precision ±1%
