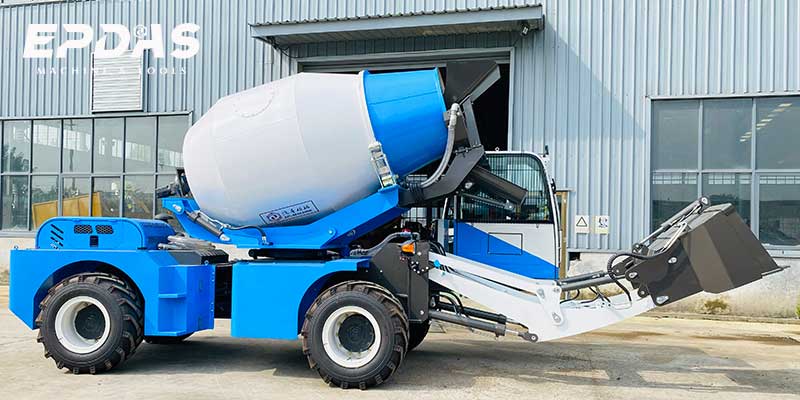

The self-loading concrete mixer truck integrates the functions of aggregate loading, batching, mixing, and transportation, demonstrating exceptional operational performance even under complex working conditions. However, to achieve maximum productivity and safety, a thorough understanding of the machine’s structural design, hydraulic architecture, and power transmission logic is essential.

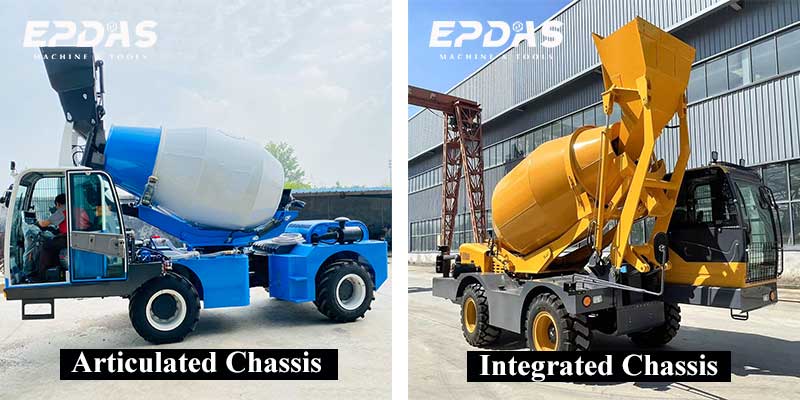

| Chassis Type | Structural Features | Stability Performance | Rollover Risk | Cost Characteristics |
| Integrated Chassis | Integrated frame structure with high overall rigidity and uniform load distribution | High; stable vehicle posture during full-load driving and turning Extremely | low; effectively handles complex road undulations | Higher cost; requires advanced structural manufacturing processes |
| Articulated Chassis | Multi-section frame with articulated joints; simple structure; small turning radius | Low; uneven load distribution under heavy loads | High; turning under load may cause rollovers due to ground undulations | Low cost; minimal structural materials and simple technology |
For large-scale infrastructure projects, overseas projects, and operations in complex terrain, a integrated chassis self loading concrete mixer must be selected to prioritize operational safety and stability. For small construction sites, rural scattered projects, and projects with limited budgets, an articulated chassis may be chosen to control procurement costs; however, load capacity and operating road conditions must be strictly limited. For high-capacity models (5.5 cubic meters and above), the use of articulated chassis self loading concrete mixer is strictly prohibited to prevent safety accidents caused by fully loaded operations.
Chassis Selection Comparison Table
| Comparison Item | Integrated Chassis | Articulated Chassis |
| Load Capacity | High | Medium |
| Tip-over Risk | Low | High (especially on uneven terrain) |
| Turning Agility | Good (with rear-wheel steering) | Excellent (but unstable) |
| Manufacturing Cost | Higher | Lower |
| Maintenance | Routine | Articulation pins require regular lubrication |
The 4WD Self Loading Concrete Mixers distributes engine power synchronously to the front and rear axles via the transmission, achieving synchronized drive to all four wheels (engine → torque converter → transmission → front and rear axles → wheels).
Rear-wheel steering is the mainstream steering method for self-loading mixer trucks with articulated chassis, achieving vehicle body steering by controlling the rotation of the rear wheels. In rear-wheel steering mode, the front wheels can only move straight and cannot achieve four-wheel steering; during turns, the vehicle body merely swings left and right, resulting in steering precision and agility that are far inferior to those of all-wheel steering in monocoque chassis vehicles.

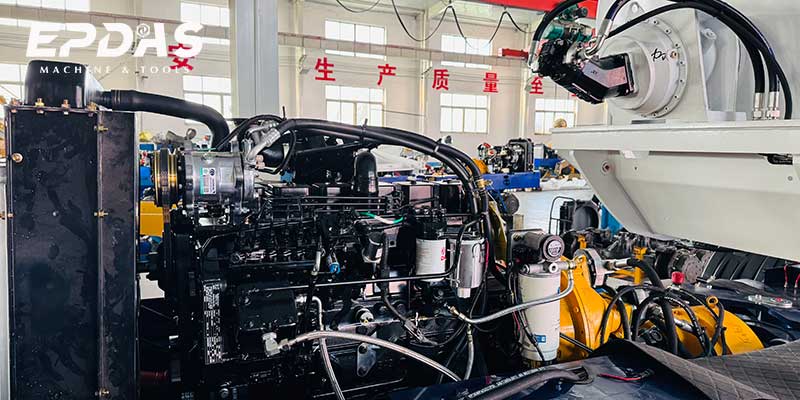

The power transmission in self-loading mixer trucks follows a complete chain: engine power output → torque converter → transmission → distribution to the chassis travel system and hydraulic system.

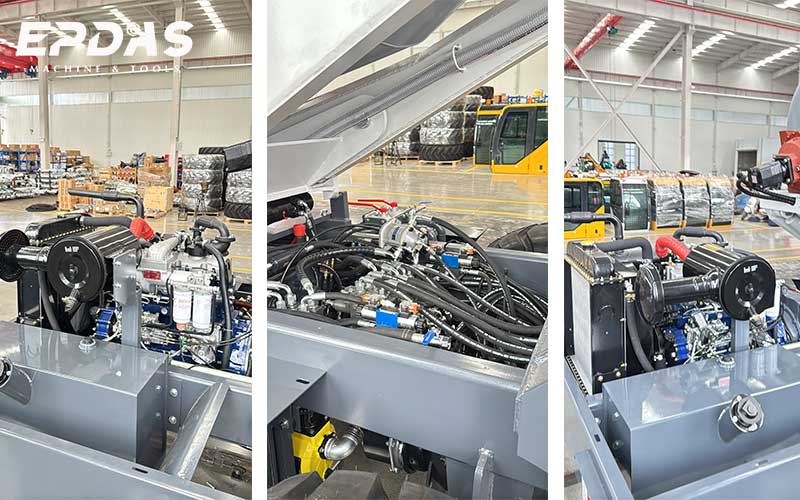

The torque converter enables flexible power transmission and achieves stepless speed variation, adapting to the varying speed requirements of mixing, loading, and transportation operations, while also cushioning load impacts to protect the engine; The transmission serves as the core of power distribution, synchronously delivering power to the chassis travel system to ensure vehicle mobility, while also providing a power source for the hydraulic system to drive operations such as mixing and loading; the transmission output shaft connects to a triple pump, which separately controls the rotation of the mixing drum, the movement of the front bucket, and hydraulic pilot operations, enabling independent control of multiple actions and coordinated operation.
Pump 1
Control Object (Shift Lever); Provides hydraulic assistance for transmission shifting, reducing operator fatigue.
Pump 2
Control Object(Front Axle Dump Cylinder); Controls the lifting, tilting, and unloading actions of the front bucket.
Pump 3
Control Object(Cab Hydraulic Control Lever); Supplies oil to the pilot control valves in the cab for auxiliary functions such as mixing drum rotation.
The three-pump interlocking technology enables independent control of multiple operations—including mixing, loading, and travel—preventing mutual interference between actions. It also allows for adjustment of power distribution ratios based on operational needs, improving fuel economy and reducing operating costs.
Mixing Drum Rotation Hydraulic Pump
Core functional pump that drives the mixing drum rotation via a hydraulic motor, controlling mixing speed and forward/reverse rotation to facilitate the entire process of concrete mixing, transportation, and unloading. The flow rate and pressure matching of this pump directly impact mixing efficiency and unloading speed, making it a core component of the hydraulic system.
Front Dump Action Hydraulic Pump
Controls the lifting and tilting of the loading bucket to facilitate automatic material loading. It is designed to handle the heavy-duty operational demands of the bucket, ensuring stable and efficient loading operations.
Cab Tilting Hydraulic Pump
Controls the tilting and repositioning of the cab to facilitate inspection and maintenance of internal components. It is equipped with a check valve to ensure operational safety during maintenance.
Significantly Improved Operational Precision
Pneumatic control uses hydraulic fluid as the medium, ensuring stable control signals and sensitive responses. It enables fine-tuning of each movement, preventing jerky operation and enhancing work precision;
Significantly Reduced Operational Effort
Pneumatic control requires only minimal force to operate the lever, yet drives high-load hydraulic movements, significantly reducing the operator’s physical strain and making it suitable for prolonged operations;
Coordinated Multi-Action Operation
Pilot valves can simultaneously distribute control signals to multiple circuits, enabling synchronized execution of multiple operations such as mixing, loading, and steering, thereby improving overall operational efficiency;
Enhanced System Reliability
Pilot control cushions hydraulic shocks, protects hydraulic components, extends the service life of the hydraulic system, and reduces the probability of failure.
In extremely cold regions where temperatures drop as low as -45°C, self-loading concrete mixers come standard with a diesel heating system. This system generates heat through direct diesel combustion, ensuring a comfortable temperature inside the cab. The diesel heater operates independently of the engine and does not interfere with engine startup.
1.Install diesel heating system (under the seat)
2.Switch to -45°C-rated coolant
3.Use synthetic hydraulic oil (winter grade ISO VG 15)
4.Install battery heating pads
5.Use winter diesel (with anti-gelling additive)
For high-temperature regions such as tropical and desert areas, the cooling system and hydraulic oil configuration are optimized to ensure stable continuous operation; the air conditioning system is upgraded to improve cab comfort; and high-temperature-resistant seals and piping are used to prevent aging and leakage caused by high temperatures.
Standardized maintenance is the core guarantee for self-loading mixer trucks to maintain high performance, extend service life, and reduce the probability of failures. A full-cycle operation and maintenance system is established, focusing on wear-prone component maintenance, scheduled servicing, and responses to extreme weather conditions.
| Component | Operation | Frequency | Performance Benefit |
| Air Filter | Compressed air purge | Daily (dusty environments) | Prevents engine power loss |
| Electronic Control Valve | Test coil resistance | Every 500 hours | Avoids unexpected shutdowns |
| Hydraulic Oil | Sampling and analysis | Every 1,000 hours | Early detection of pump wear |
| Air Conditioning | Compressor Check belt tension | Every 3 months | Extends compressor life to over 2 years |
Before starting work, activate the diesel heater to preheat the cab and hydraulic system; begin operations only after the hydraulic oil temperature has stabilized;
Regularly check the coolant level and freezing point to ensure it can withstand the local minimum temperature;
Drain accumulated water from the hydraulic system daily after work to prevent component damage from freezing;
Perform regular maintenance on the diesel heater, including cleaning carbon deposits, to ensure stable heat supply.
Check the hydraulic oil temperature and the operating status of the cooling system before daily operations to avoid working in high temperatures;
Regularly replace high-heat-resistant hydraulic oil and clear debris from the radiator to ensure effective cooling;
Avoid continuous operation during the midday heat; schedule work times appropriately to prevent equipment overheating.
Establish a full lifecycle maintenance record for the self load concrete mixer, documenting maintenance dates, tasks, and component replacements to proactively identify potential faults and prevent unexpected downtime;
Gradually upgrade core components (such as hydraulic pumps, electronic control systems, and seals) based on the equipment’s service life and operating conditions to enhance performance and extend service life;
Provide regular training for operators to standardize operating procedures, prevent equipment damage caused by operator error, improve operational compliance, and ensure stable equipment operation.
Through continuous optimization of structural design, hydraulic systems, and powertrain systems, self-loading concrete mixers achieve a perfect balance of high efficiency, high stability, and low cost. For construction companies, a thorough understanding of their technical structure helps in selecting the most suitable equipment, thereby enhancing overall construction efficiency.
