The asphalt mixing plant is the core production equipment for infrastructure projects such as road construction, municipal engineering, airport runway, port terminal and supporting water conservancy facilities. It directly determines the production quality, construction efficiency, project construction period and overall cost of asphalt mixture. Choosing an asphalt mixing station that highly meets the specific needs of the project can not only ensure the smooth progress of construction, but also help to achieve long-term cost saving and efficiency improvement.

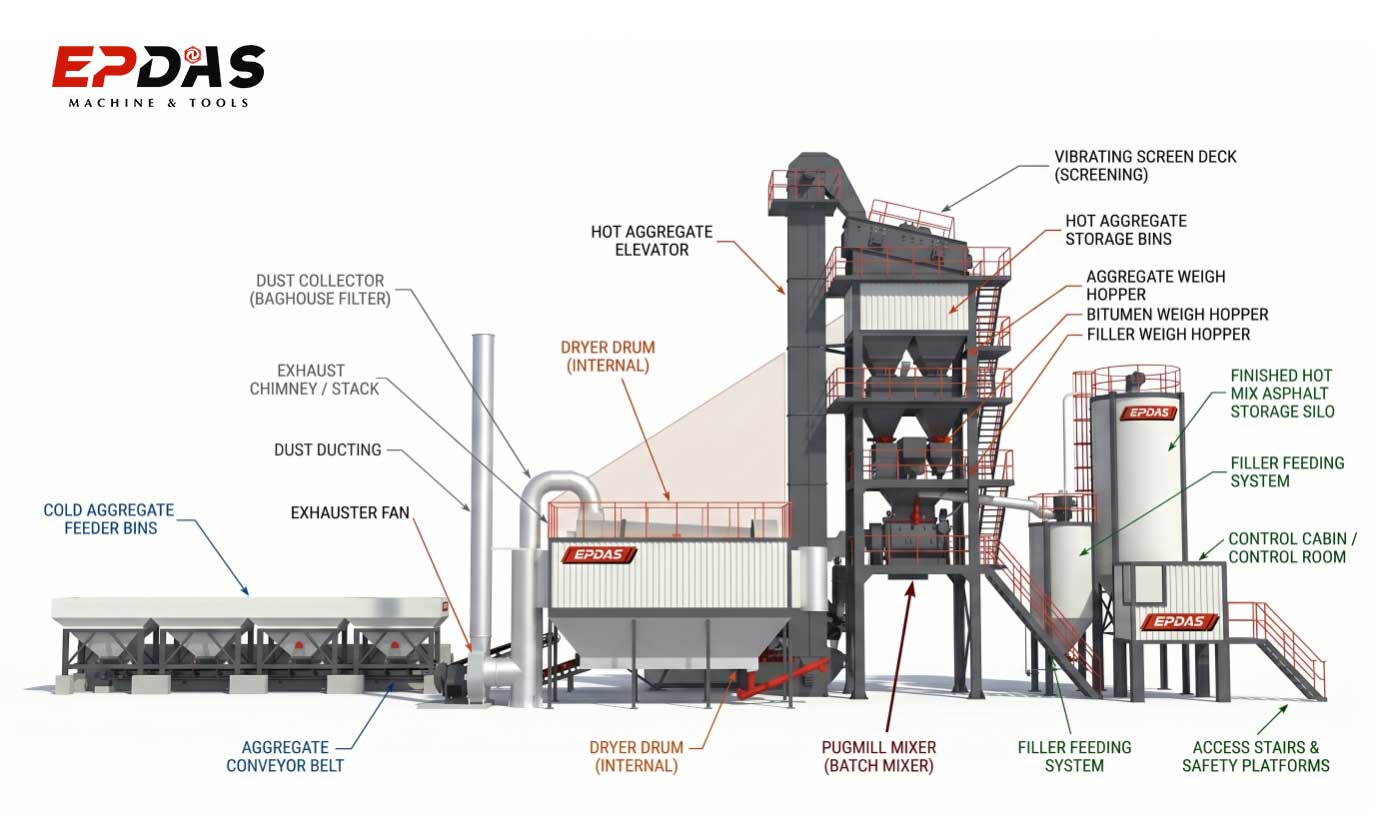

A complete asphalt mixing plant is a highly integrated industrial equipment, which consists of seven core parts: feeding system, drying and heating system, screening and metering system, mixing system, gas supply and heating system, dust removal and environmental protection system, and control system. The performance, material and accuracy of each component directly determine the stability, quality of the mixture, the level of energy consumption and the ability to meet environmental protection standards of the equipment.
| Comparison items | Batch asphalt mixing plant | Continuous asphalt mixing plant |
| Production principle | Aggrate cold mixing → drying and heating → hot screening → independent measurement → batch forced mixing → discharge | Continuous loading → synchronous drying and heating in the drum → continuous metering and stirring → continuous discharge |
| Measurement accuracy | Medium, continuous measurement, grading stability is weaker than intermittent | Extremely high, aggregate ±1%, asphalt within ±0.5%, accurate grading |
| Mixture quality | Suitable for modified asphalt, recycled material, high-grade road surface, stable quality | Suitable for ordinary asphalt mixture and meet general road standards |
| Production efficiency | Medium, single pot circulation, suitable for multi-recipe switching | High, continuous production, large output per unit time |
| Structural complexity | The structure is complex, including hot screening, multi-metering bucket, forced stirring cylinder | Simple structure, integrated roller, few parts |
| Equipment cost | High | Lower, low investment cost 15%–30% |
| Energy consumption level | Slightly higher | Lower and higher thermal efficiency |
| Difficulty of maintenance | There are many maintenance points, and the maintenance requirements are slightly higher. | Simple maintenance and low failure rate |
| Regeneration adaptability | It can be equipped with an independent regeneration system and supports a high proportion of RAP | It can be equipped with simple regeneration, and the stability of high-proportion regeneration is average. |
| Typical applicable scenarios | Expressway, airport, main road, modification / regeneration project | Rural roads, ordinary highways, grass-roots construction, large-scale low-cost projects |
| Comparison items | Fixed asphalt mixing plant | Mobile asphalt mixing plant |
| Installation method | Concrete foundation + fixed installation of steel structure | Tire/trailer integration, overall traction, no foundation required |
| Infrastructure investment | High, need material field, foundation, factory support | Extremely low, almost zero infrastructure |
| Installation cycle | Long, 7–30 days | Extremely short, 1–3 days can be put into production |
| Transfer ability | Immovable, one-time landing | Extremely strong, can quickly pull the transfer field |
| Equipment stability | The highest, suitable for long-term continuous operation | Generally, suitable for short-term and small output |
| The upper limit of production capacity | High, can achieve 200–400t/h and above
|
Medium and low, mainly 40–160t/h |
| Service life | The longest, more than 10–15 years | Medium, 6–10 years |
| Residual value and reuse | Low, high demolition cost | High, can be transferred and reused many times. |
| Applicable scene | Long-term base, large-scale project, continuous production | Emergency repair, scattered projects, short-term construction sites |
Based on the daily output during the peak period of the project. For example, a highway project requires 24-hour continuous operation, and 3,000 tons of asphalt mixture is required every day during peak hours, so the rated production capacity of the equipment should not be less than 180-200 t/h (considering the effective operating time).
Pay attention to distinguish between “theoretical maximum production capacity” and “actual production capacity” (related to aggregate moisture content, sieve hole size and filler ratio). Manufacturers are required to provide actual measurement data under standard working conditions.
The price of heavy oil is low, but the environmental protection pressure is high, and the burner maintenance cost is high.
Light diesel is easy to use but expensive, which is suitable for short-term projects.
Natural gas is clean and moderate in cost, but pipelines need to be laid or LNG gasification stations need to be built.
The cost of coal powder is the lowest, but the investment in environmental protection rectification is large, and it is gradually eliminated.
It is recommended to calculate the fuel cost per ton of finished material (yuan/ton) and compare it with the local energy price.
Roller equipment (especially double roller and counterflow type) is easier to achieve high-proportion addition.
Intermittent equipment needs to be equipped with RAP lifting, heating and weighing systems separately, and the addition ratio is usually 15-30%. If you expect to use a lot of recycled materials in the future, you should give priority to equipment that supports high RAP.
The dynamic measurement accuracy of aggregate, powder and asphalt should meet the requirements of aggregate ±0.5%, powder ±0.3% and asphalt ±0.2%.
The temperature fluctuation range of the finished material is controlled within ±5°C to avoid agglementation or aging.
The sieving area and the number of layers of the vibrating screen determine the degree of grading deviation.
In 2026, the mainstream equipment will be equipped with PLC intelligent control system, one-click production, automatic ratio, automatic temperature control, and automatic alarm. The touch screen operation is simple and easy to understand, reducing manual requirements. Remote monitoring, mobile phone/computer real-time inspection of output, temperature, failure and fuel consumption. Automatically generate production reports, which is convenient for management and settlement.
If the environmental protection does not meet the standard, no matter how cheap the equipment is, it cannot be started.
First-class dust removal cyclone dust removal, coarse dust recovery.
Secondary dust removal cloth bag dust removal, discharge concentration ≤20mg/m³, meeting domestic and EU standards.
The fully sealed structure silo, conveyor belt and hot silo are fully closed, and there is no dust leakage.
Noise reduction treatment soundproof cover, shock-absorbing base, noise ≤80 decibels.
Waste recycling, asphalt flue gas treatment, sewage recycling, zero pollution.
In China, it meets the “Comprehensive Emission Standards for Atmospheric Pollutants”, dust emissions ≤20mg/m³, and no black smoke. European Union CE certification, EN50398 standard, low nitrogen, low dust. The U.S. EPA environmental protection standard strictly controls VOC and flue gas.
Noise reduction must be treated near residential areas to avoid night construction. Standardize the emergency stop button, overload protection, high-temperature alarm and fire protection system. Explosion-proof, rain-proof, lightning-proof, in line with local voltage standards.
The use of RAP old materials is mandatory, and the regeneration ratio of high-speed projects is required to be 30%-50%. The selection must reserve the interface of the regeneration system, or directly configure the double drum regeneration and additional regeneration material system.
In 2026, electric drive, dual fuel, waste heat recovery and hot mixing technology will become the standard. If it does not meet the low-carbon requirements, it will not be included in the list of key projects. Compliance not only meets the needs of the present, but also advances the layout of the project in the next 3–5 years.
The northern project needs to install an arch-breaking device or a heating hopper to prevent the silo from freezing. Multi-variety aggregates need to increase the number of silos (from 4 warehouses to 6 warehouses).
High water content aggregates (such as wet river sand) need to lengthen the roller or increase the angle of the lift plate, otherwise the production capacity will be greatly reduced.
In coastal or high-humidity areas, it is necessary to use waterproof filter material for pulse cloth bag dust removal, and add a heat tracing system to prevent condensation.
The boiling point of thermal oil in high-altitude areas is reduced, and the design of the heating system needs to be adjusted. The thickness of the insulation layer needs to be increased in cold areas.
Multilingual interface (Spanish, Arabic, Russian, etc.), remote diagnosis module, data interface docking with local ERP system.
The new asphalt plant can increase the RAP addition ratio to more than 50% or even 80% (with double drum or ring regeneration technology). Greatly reduce the use of new asphalt and aggregates, and reduce carbon emissions and raw material costs. By adding a warm mixture or foam asphalt process, the production temperature of the mixture is reduced by 30-50°C, the energy consumption is reduced by more than 20%, and the flue gas emission is significantly reduced.
Remote monitoring, AI troubleshooting and automatic ratio, the operating data of the Internet of Things (IoT) platform (temperature, fuel consumption, output, emissions) are uploaded to the cloud in real time, and the project manager can view it on the mobile phone. Through the change of vibration, current and other parameters, we can warn in advance of faults such as screen damage, overheating of bearings, belt running and deviation, and reduce unplanned downtime. The mixing grade required for different projects is different, and the intelligent system can switch with one click and automatically calibrate the weighing system.
The installation cycle of traditional fixed asphalt stations is usually 30-45 days. The modular design pre-installs the drying drum, mixing tower, dust collector, control room, etc. into standard container modules. It only needs to be hoisted and spliced on site, and it can be put into production in 7-15 days. For international engineering projects, modular design facilitates maritime and inland transportation and reduces logistics costs.
Some manufacturers promise “45-day delivery”, but do not inform users that they need to prepare special lifting equipment or additional pouring foundations by themselves. The contract should specify the “delivery scope” and “on-site installation conditions”.
The fuel consumption marked by some small factories is 0.5 kg/t, and the actual measurement may reach 6.5 kg/t. It is required to write the clause “guarantee the fuel consumption value, and the excess part shall be compensated by the supplier”.
Observe whether there is black smoke or blue smoke in the chimney. Old-fashioned equipment without cloth bag dust removal cannot pass the environmental assessment. Dust emission test report (third party) is required.
Under the industry trend in 2026, intelligence, greening, regeneration, modularization and energy saving will become the mainstream. Whether it is domestic infrastructure or overseas engineering, only by choosing an asphalt mixing plant that fits the working conditions, meets the standards, has reliable quality and service can we truly achieve cost reduction, efficiency increase, quality assurance and compliance, and lay a solid foundation for enterprise profits.
